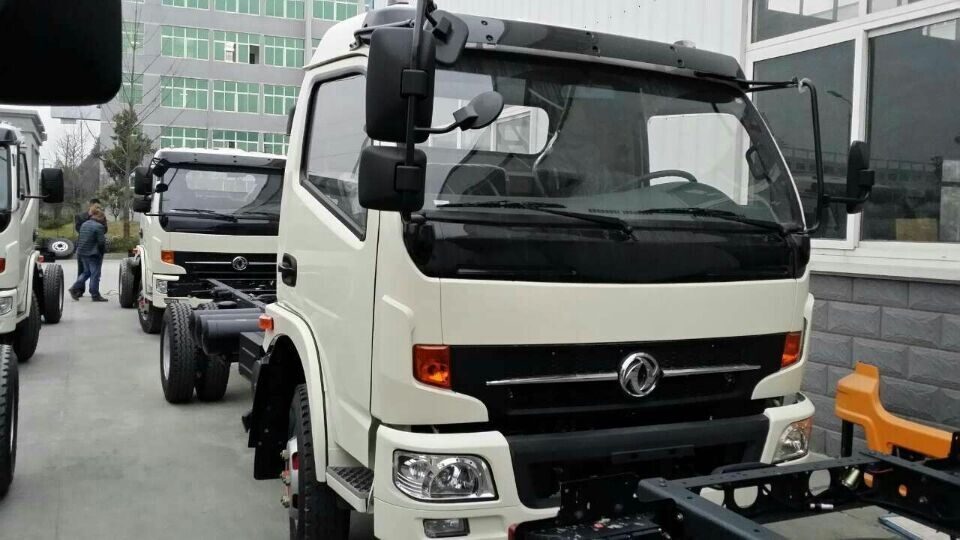

Exported To Saudi Arabia Captain Truck Chassis With GCC Certificate

Share Us:

Date: May 23,2016 View:1168


Truck specification:

Cabin Single Cab
Overall 6400x2400x2500
Cargo Body 4150 x1990 x450
Wheel Base(mm) 3300
Tread(F/R)(mm) 1586/1530
F/R suspension 1115/1580
Curb Weight(kg) 2750
Payload(Kg) 5000
G.V.W(kg) 6850

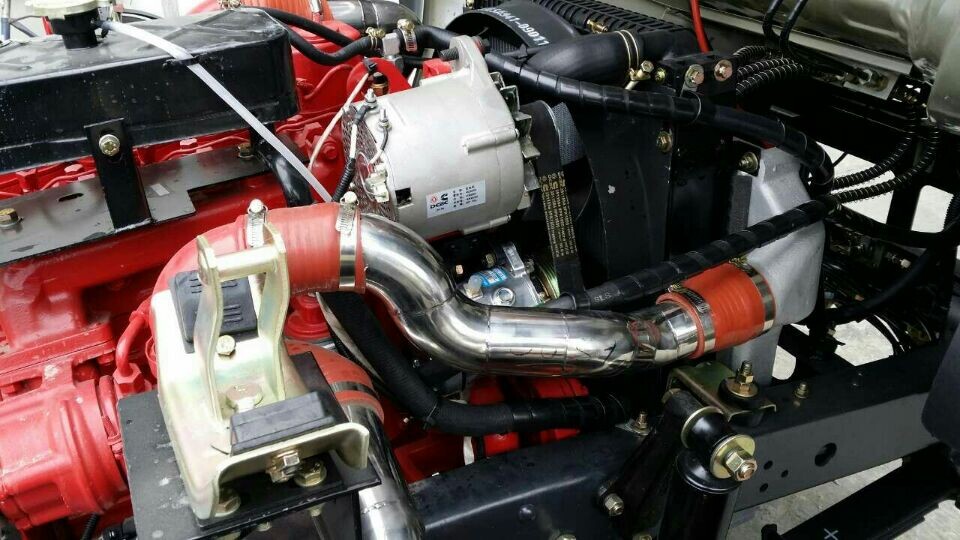

Engine Model EQB125-30
Seris Cummins B series
Engine Manufacturer Dongfeng Cummins Engine Co., Ltd.
Adaptation Scope Truck Engine
Intake type Supercharge and intercooling
Number of Cyllinders 6
Fuel Type Diesel
Cylinder Arrange Pattern In line
Displacement 3.9L
Emission Standard Euro 3
Max.power(hp) 125hp
Max.torque(N.m) 410N.m
Max.torque rotate speed 1500RPM
Engine Type 6 cylinder In line, air intake preheating device, High-power starter of 6.6KW, thoroughly improve the engine cold start,
Engine Net Weight(kg) 350
Engine Dimension(mm) 810x720x820
Compression Ratio 17.3:1
Bore x Stroke (mm) 102x120
Max Speed(kg/h) 105
Max Gradeability 30
Min Turning Radius(m) 7.5
Power steering Equipped
Brake air
Battery 24V
Tire 7.5R16
Heater Equipped
Air conditioner Optional
Centrul Lock and Power Window Optional
