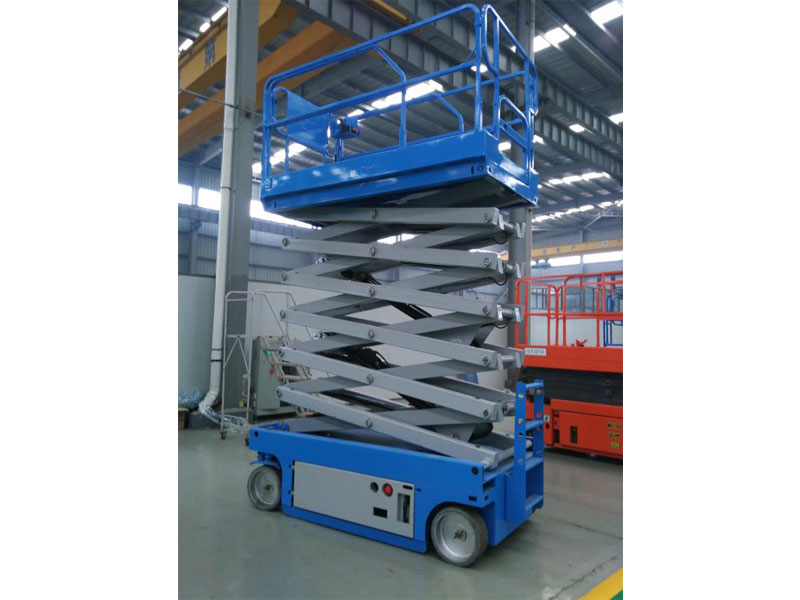

Dongfeng Jianghe Brand Electrcal Scissor Aerial Lifting Working Platform 07 Series 7m

Aerial Working Platform

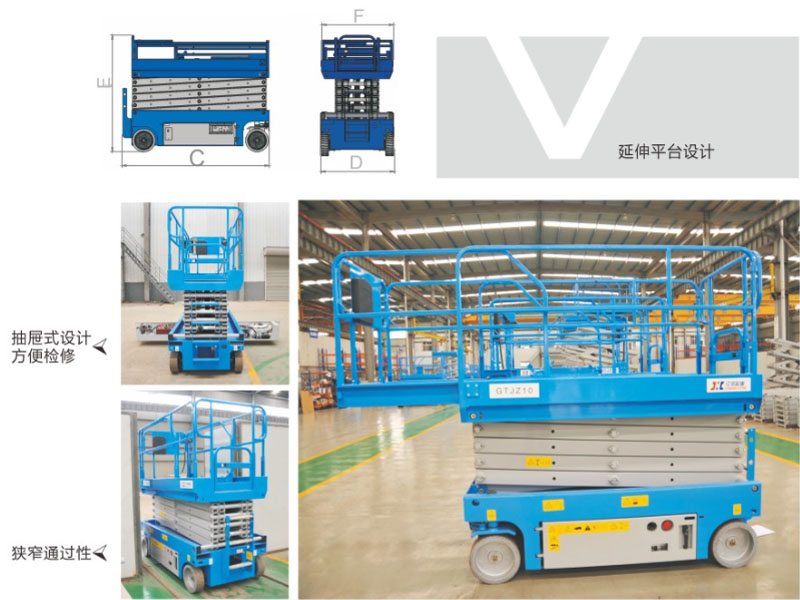

Dimension

Model

GTJZ0807HD

Max.working height-A

7.8 m

Max.platform height-B

5.8 m

Overall weight

1260 kg

Overall length-C

1.86 m

Overall Width-D

0.76 m

Overall height(railings unfolded)

2.19 m

Overall height(railings folded)-E

1.85 m

Wheelbase

1.4 m

Platform size(L*W-F)

1.67*0.74 m

Min.ground clearance（stowed）

0.1 m

Min.ground clearance（elevated）

0.02 m

Extendable platform length-G

0.9 m

Performance

Lift capacity

230 kg

Extension Deck lift capacity

113 kg

Max.occupancy

2

Min.turning radius-inside

0 m

Min.turning radius-outside

1.6 m

Drive speed(platform lowered)

3.5 km/h

Drive speed(platform Elevated)

0.8 km/h

Lifting/lowering speed

18/22 sec

Gradeability

25%

Max.tilt(Euro/USA)

1.5°/3°

Tire

Ф323×100 mm

Power

Motor

24V/3.0 kw

Battery

4×6V/225Ah

Charger

24V/25A

Standard

Pothole guards

Options

AC power to platform

Extension deck

Solid non-marking tires

Overload sensor

On-board diagonstic system

Tilt level sensor

Dual flashing beacons

Folding rails

Emergency stop

Airline to platform

Manual platform lowering valve
