4WD Pickup T8 Diesel Double Cabin Pickup Truck

Maximum Torque(Nm):100-200Nm
Dimension:5290*1850*1810mm
Wheelbase:≤1500mm, 2750
Number of Seats:5
Minimum Grand Clearance:20°-25°
Fuel Tank Capacity:≤50L
Curb Weight:1000kg-2000kg, 1970kg
Cabin Structure:Non-integrated body
Drive:AWD
Front Suspension:Multi-link
Rear Suspension:Multi-link
Steering System:Hydraulic
Parking Brake:Manual
Brake System:Front disc+Rear dsic
Tire Size:R16
Airbags:2
TPMS(Tire Pressure Monitor System):Yes
ABS(Antilock Braking System):Yes
ESC(Electronic Stability Control System):Yes
Roof rack:Aluminium alloy
Steering Wheel:Normal
Seats Material:Fabric
Driver’s Seat Adjustment:Electric
Copilot Seat Adjustment:Manual

Rated 4.5/5 based on 232 customer reviews
Share:
Content
A pickup truck is a light-duty truck having an enclosed cab and an open cargo area with low sides and tailgate.

Pickups can be used as special vehicles, multi-purpose vehicles, official vehicles, commercial vehicles, or as family vehicles for cargo, travel, rental, etc.
Drive model
4WD
Cabin
Double Cabin

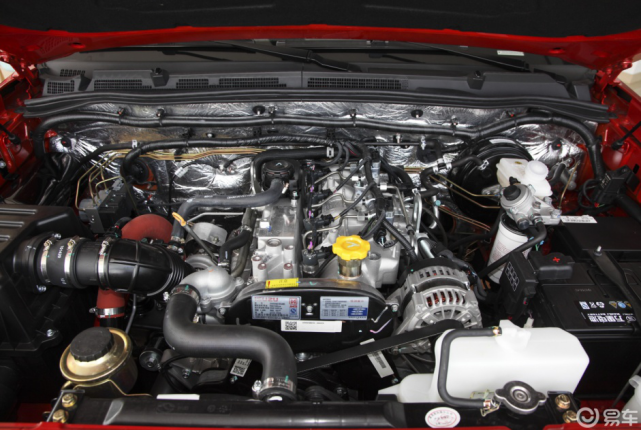

Engine
Diesel 2.5T, Turbo
Gearbox
6 AT
Size
5325*1880*1830
Cental Screen
8′ color screen, optional
High end visual effects

Multi-function steering wheel, piano-style buttons, large-area chrome-plated design, electronically controlled time-sharing four-wheel drive, dual-temperature zone air conditioning.

The side of the car body has a double waist line design, the roof is equipped with a luggage rack, the bottom has a side pedal, and the rear side of the rear door side window is raised upwards, and the whole vehicle is full of motion.
  • High-end configuration

double waist line design, the roof is equipped with a luggage rack, the bottom has a side pedal, and the rear side of the rear door side window is raised upwards, and the whole vehicle is full of motion.

The overall vehicle size  5335*1930*1835mm, the wheelbase is 3180mm, and the container size is 1600*1595*500mm.  Equipped with 245/65 R17, 265/65 R17 or 265/60 R18 tires.
SPECS GROUP
DISCRIPTION
SPECIFICATION
基本信息
Basic information
品牌
Brand/Model
JAC
车系
Model
T8
燃料类型
Fuel Type
Diesel
发动机
Engine
2.0CTI
车型号
Product Model
HFC1037D3KST
版本
Version
Full
结构区别号
Design Code
P30M7
驾驶室形式
Cab Type
R
驾驶室
Cabin
DOUBLE CABIN
前八位VIN
VIN
LJ11PABD
备注
Remarks
尺寸参数
Dimension
整车外形尺寸(长×宽×高)
Overall Dimensions(L×W×H)(mm)
5325*1880*1830
货箱尺寸(长×宽×高)
Rear body size (inner)
1520*1520*470
轴距(mm)
Wheelbase(mm)
3090
轮距(前/后))
Tread (front / rear )FT/RT (mm)
1570/1570
总质量(kg)
GVW (kg)
2870
整备质量(kg)
Curb Weight(kg)
1970
载质量(kg)
Payload(kg)
900
乘员数
Seats
2+3
最小离地间隙
Mini Ground Clearance(mm)
220
前悬/后悬
FF/RF (mm)
950/1285
最大爬坡度(℅)
Max Gradeability(%)
30
最小转弯半径(m)
Min Turing Radius(m)
6.2
接近角/离去角
Approach / Departure Angle
30.9/23.3
动力性
Power performance
驱动形式
Drive mode
4×4
发动机型号
Engine model
HFC4DB2-1C
型式
Type
Common Rail+EGR+DOC
排量 (cc)
Displacement (cc)
1999
额定功率(KW/r/min)
Max Power (KW/r/min)
102/3600
额定扭矩(Nm/r/min)
Max Torque (Nm/r/min)
320/1600~2600
排放标准
Emission
Euro IV
变速器型号
Transmission Model
LC6T32
变速器型式
Transmission
MT
各档速比
Gear Ratio
5.441;2.839;1.721;1.223;
1.000;0.794;R:4.935
最高车速(km/h)
Maximum speed(km/h)
150
后桥速比
Rear Axel Ratio
4.1
底盘 & 转向
Chassis & Steering
前悬架类型
Front suspension
Double wishbone independent suspension with spiral spring
后悬架类型
Rear suspension
Non-independent rear leaf spring suspension
后桥差速锁
Rear Differential Lock
助力类型
Steering
Hydraulic Power Assisted Steering
油箱容积
Fuel tank capacity (L)
76
车轮制动
Wheel & Brake
前制动器类型
Front brake
Disc
后制动器类型
Rear brake
Disc
手刹
Handbrake
电子驻车
Electronic parking brake
自动驻车
AUTO HOLD
轮胎规格
Tire size
265/60R18
铝合金轮辋
Aluminium alloy rim
全尺寸备胎
Original size spare tire
安全配置
Safety equipment
ABS防抱死制动系统
Anti-lock Braking System(ABS)
EBD电子制动力分配系统
Electronic Brake Force Distribution (EBD)
BOS刹车优先
Brake Override System(BOS)
HHC坡道辅助系统
Hill-start Hold Control(HHC)
HBA液压制动辅助系统
Hydraulic Brake Assist (HBA)
TCS牵引力控制系统
Traction Control System(TCS)
VDC车辆动态控制系统
Vehicle Dynamics Control(VDC)
ESC车身稳定系统
ESC-Electronic Stability Control
LDW车道偏移示警
Lane Departure Warning(LDW)
BSD盲点监测系统
Blind Spot Detection(BSD)
HDC陡坡缓降
Hill Descent Control(HDC)
胎压监测
TPMS
驾驶模式切换(标准、经济、运动)
Drive Mode Switch(Normal, ECO & Power Mode)
主副驾驶安全气囊
Driver and front passenger airbags
前排侧气囊
Driver and front passenger side airbags
前排侧气帘
Driver and front passenger curtain airbags
膝部气囊
Knee airbags
前排安全带高度可调
Front seat belt height adjustable
前排预紧式安全带
Driver and front passenger pre-tensioner seatbelt
后排中间三点式安全带
Rear middle seat with three point safety belt
主驾驶安全带未系报警
Driver seat belt with alarm system
副驾驶安全带未系提醒
Front passenger seatbelt warning buzzer
后排中间座椅头枕
Rear middle seat headrest
中控门锁
Central locking
电动车窗锁止功能
Power window lock function
车门自动落锁
Auto Lock
车门未关提醒
Door ajar warning light
遥控钥匙
Remote key
无钥匙进入及启动系统
Smart Entry and Start System
发动机防盗
IMMO (Engine immobilizer)
高位刹车灯
High-mounted brake light
ISOFIX儿童座椅接口
ISOFIX (International Standards Organization FIX)
儿童锁
Child safety lock
前雷达
Front parking distance sensors
倒车雷达
Reversing radar
倒车影像
Reversing video images
360°全景影像
360°View camera
行车记录仪
Tachograph
外饰
Exterior equipment
喷涂式货箱宝
Cargo Protector
货箱龙门架
Roll bar
货箱外绳钩
External cargo rope hook
车顶行李架
Roof Rails
电动天窗
Power sunroof
全景天窗
Panoramic sunroof
隐私玻璃
Privacy glass
侧踏板
Side padels
卤素大灯
Halogen lamps
氙气大灯
Xenon headlamps
LED大灯
LED headlamps
卤素日间行车灯
Halogen daytime running lamps
LED日间行车灯
LED daytime running lamps
LED后尾灯
LED tail lamps
前/后雾灯
Front and rear fog lamps
大灯高度可调
Headlamp levelling
大灯自动点亮
Headlamps automatic lightening
大灯延时关闭
Follow me home function
AFS随动转向大灯
Adaptive Front-Lighting System (AFS)
后视镜电动调节
Exterior mirror electric adjust
后视镜电加热
Heated side mirrors
后视镜电动折叠
Exterior mirror electric folding
后风窗除霜
Heated rear window
内饰
Interior euipment
内饰颜色
Interior color
Black
皮革内饰
Leather accented interior
迎宾灯
Welcome lamps
阅读灯
Reading light
眼镜盒
Sunglass holder
主副驾驶遮阳板
Driver and front passenger Sun visors
真皮多功能方向盘
Leather Bound Multi-function Steering Wheel
定速巡航
CCS-Cruise control system
自适应巡航控制系统
Adaptive cruise control(ACC)
方向盘上下调节
Steering wheel up&down adjust
方向盘前后调节
Steering wheel depth adjust
行车电脑
Trip computer
全液晶仪表盘
LCD instrument panel
组合仪表调光开关
Instrument cluster dimmer switch
电动玻璃
Power Window
锁车自动升窗
Remote control of opening/closing windows
四门车窗一键升降+防夹
Automatic up/down+anti-clamp for all widows
内后视镜手动防眩目
Manual anti-glare of interior mirror
内后视镜自动防眩目
Automatic anti-glare of interior mirror
感应雨刷
Rain Sensing Windscreen Wipers
手动空调
Manual air conditioning
自动空调
Automatic air conditioning
后排出风口
Rear Vents
引擎盖隔热垫
Heat insulation pad of hood
引擎盖气撑杆
Air supporting rod of hood
座椅面料
Seat material
Leather
主驾手动调节
Manual driver seat
●(6)
副驾手动调节
Manual co-driver seat
●(4)
主驾电动调节
Electric driver seat
副驾电动调节
Electric co-driver seat
前排座椅加热
Front seats heating
前排中央扶手
Front armrest
后排中央扶手及杯架
Rear armrest with cup holders
多媒体配置
Multimedia configuration
收音机
Radio
CD
CD
MP5
MP5
GPS导航系统
GPS
手机互联
Smart Phone Integration
USB接口
USB
12V电源接口
12V accessory socket
220V电源接口
220V accessory socket
扬声器数量
Speakers
6
无线充电
Wireless charging
蓝牙电话
Bluetooth phone
语音控制
Voice control
