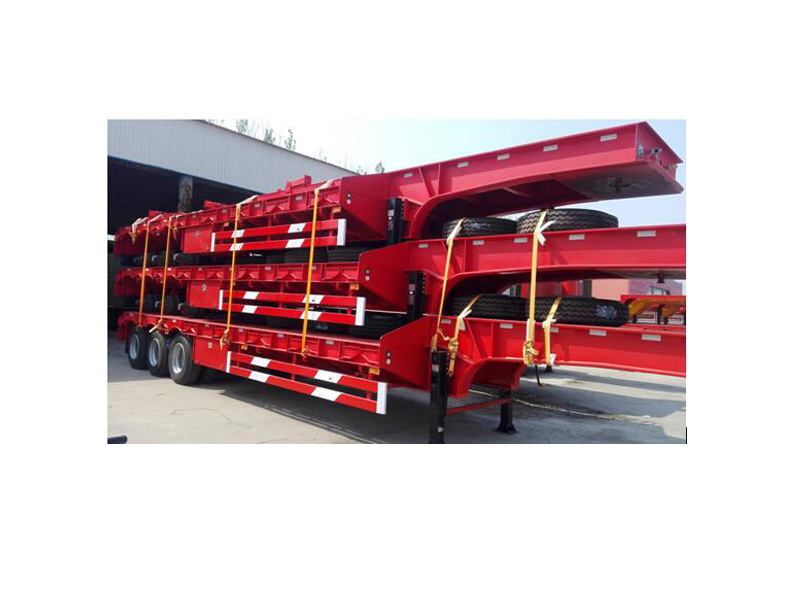

The trailer is designed for stevedoring and transporting engineer trucks.
Length: Approx 13,500 mm
Width: Approx 2,500 mm extended to 3,000mm
Height: Approx 3,430mm @ unload (include the ramp)
King Pin Location: Approx 560mm from the front face of the front bolster
Unladen platform length: Approx 12,000mm
Landing gear location: Approx 2,300 from the kingpin position.
King Pin Height: Approx 1,291mm with the chassis level
((The above dimension will be adjusted according to the tractor specification. )
Max. Payload: Approx 45,000 kg (3 Axles) / 60,000kg (4 Axles)
Material: High strength low alloy steel T700 is used for welded I-beam and 235 MPa is used for fabricated parts .
Loading Ramps: 2 units hydraulic ramps, width 650mm.
OEM Parts Configuration:
King Pin: 3.5” exchangeable king pin. Brand: JOST. Made in
Landing Gear: two speed road side winding with sand shoe. lifting capacity: 24ton,Type: JOST C200. left operating. Made in
Suspension: Heavy duty undermount tri-axle suspension with equalizers 12-leaf spring, 6 (3 Axles) or 8 (4 Axles) sets, Made in
Axles: 3x13 ton capacity, brand: FUWA. Made in
Rims: 6.50-16, 13 (3 Axles) or 17 (4 Axles) pieces. Made in
Tires: 8.25R16 , 13 (3 Axles) or 17 (4 Axles) pieces. Made in
Brake System: Dual air brake system, WABCO emergency relay valve. WABCO ABS brake system. Made in
Brake chamber: Type 30/30 on all axles. Made in
Electrical System: 24 volt LED lighting system with modular wiring harness, 7-way ISO receptacle in front of the front bolster. Chinese standard No E-mark and no SAE certificate.
Front mark light: white ,
side mark lamp: amber,
Rear lamp: white;
Turn signal lamp: amber.
Spare Tire & Carrier: Equipped one set of tire carrier per chassis with one spare tyre.
Side Guard: Standard. Tool Box: Equipped one set with tools
Painting: TBD. Marking: TBD.
One cranking bar for spare tyre; one set of tyre spanner; one gudgeon bushing.
1. All the details not mentioned above should be comply with Chinese standard.
2) These specifications are given as information. We reserves its right to change them without previous notice.
