  • Dongfeng 4x2 DFL1120 Flatbed Transport Truck

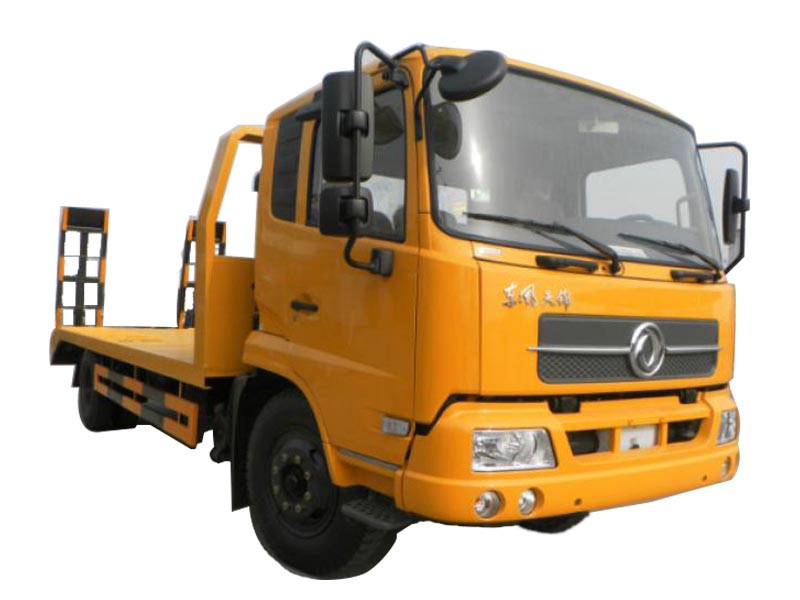

Dongfeng 4x2 DFL1120 Flatbed Transport Truck

  • Chassis Dongfeng DFL1120 chassis
  • Engine Cummins
  • Certificate ISO, CCC
  • Capacity 15-20T

We're here to help:Easy ways to get the answers you need

Feature

Main Feature:


Chassis: Dongfeng DFL1120 chassis

Engine: Cummins

Certificate: ISO, CCC

Capacity: 15-20T

parameter

Drive mode 4×2
Engine Model Cummins B170 33
Type 6-cylinder in line, turbocharging, inter cooling, mechanical injection pump, built-in EGR
Max. power(Kw/rpm) 125/2500
Max. torque(N.m/rpm) 550/1500
Cylinder bore ×Stroke(mm) 102×120
Displacement(ml) 5900
Type of fuel Diesel
Compression ratio (17.5±0.5):1
Cab D530 one and a half rows
Capacity 3 persons
Gearbox Type DF6S750
Max. torque(N.m) 750
Clutch Φ395mm push-type diaphragm spring clutch
Frame H×W× T(mm) 250×80×(7+4)
Axles Front axle(Kg) 4500
Rear axle(Kg) 9000
No. of spring leaves 7/9+6
Tyre Size 9.00-20
Air conditioner A/C
Dimensions Overall dimension(mm) 8600×2500×2830
Inner dimension(mm) 6600×2294
Wheel base(mm) 5000
Front/Rear tread(mm) 1880/1800
App./Dep. angel (°) 20/11
Performance Max. speed(Km/h) 90
Max. gradeability(%) 30
Min. turning diameter(m) 17
Mass Payload(Kg) 18,700
Curb weight(Kg) 5,880
G.V.W(Kg) 24,580
