  • dongfeng-eq1121-swing-arm-garbage-truck

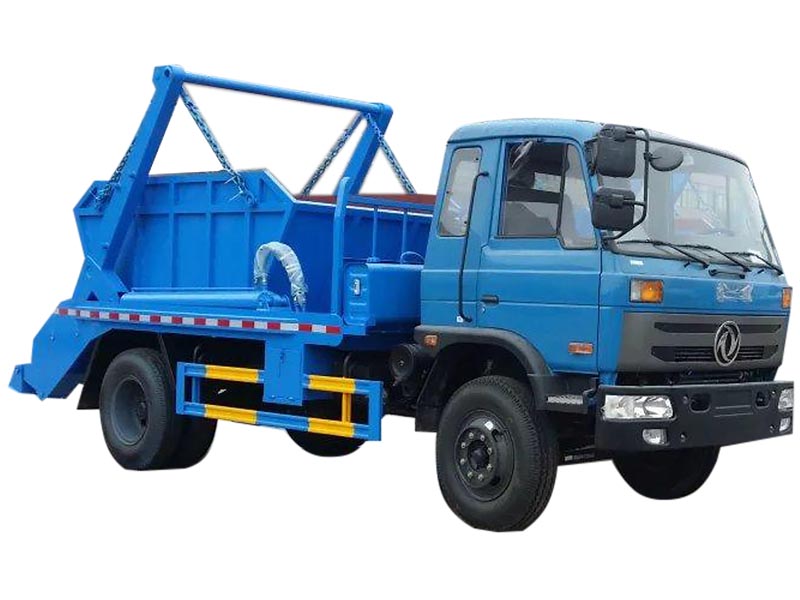

Dongfeng 4x2 EQ1121 3-8 m³ Swing Arm Garbage Truck

  • Chassis Dongfeng EQ1121 chassis
  • Engine Cummins
  • Certificate ISO, CCC
  • Tanker capacity 3-8m³/3000-8000L

We're here to help:Easy ways to get the answers you need

Feature

Main Feature:


Chassis: Dongfeng EQ1121 chassis

Engine: Cummins

Certificate: ISO, CCC

Tanker capacity: 3-8m³/3000-8000L

parameter

Truck

Chassis model

EQ1121GKJ

Engine

Cummins 170-30

Max. power (KW/rpm)

125/2500

Max. torque (N.m/rpm)

700/1200-1700

Type OF Fuel

Diesel

Outer dimension (mm)

7350×2480×3350

Wheel base (mm)

3950

Front/Rear tread (mm)

1900/1800

App./Depar. Angle (°)

30/28

Payload (kg)

4900

Curb weight (kg)

7355

G.V.W (kg)

12450

Max Speed (Km/h)

85

Tyre

9.00-20

Specfication of Tank

Container Capacity (m³)

3-8

Filling Mouth Grand Clearance (mm)

740

Lifting arm circumference radius (mm) :

2400

Filling Circulation Time (s)

20-25

Unloading bucket hoisting time (s)

30

The hydraulic system working pressure (Mpa)

16

Max.Discharge Strength (T)

8
