  • DFA1063 road sweeper truck

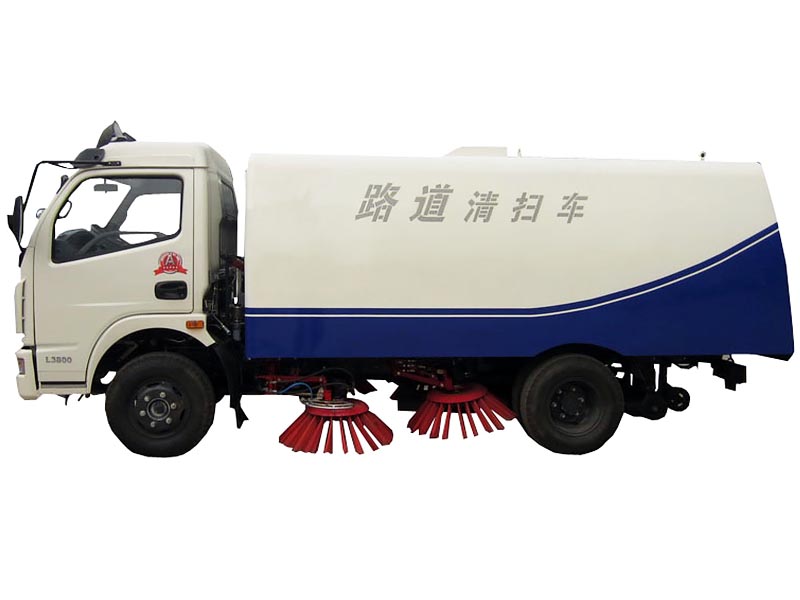

Dongfeng DFA1063 3-5 m³ Road Sweeper Truck

  • Chassis Dongfeng DFA1063 chassis
  • Engine CHAOCHAI
  • Certificate ISO, CCC
  • Tanker capacity 3-5m³/3000-5000L

We're here to help:Easy ways to get the answers you need

Feature

Main Feature:


Chassis: Dongfeng DFA1063 chassis

Engine: CHAOCHAI

Certificate: ISO, CCC

Tanker capacity: 3-5m³/3000-5000L


parameter

Truck

Drive mode

4×2

Chassis

DFA1063

Engine

Model

CY4102QBZL

Type

4-cylinder in line, turbocharging and inter cooling, water cooling

Max. power(Kw/rpm)

88/2800

Displacement(ml)

3856

Type of fuel

Diesel

Dimmensions

Overall dimension (mm)

6695×2300×2500

Wheel base (mm)

3800

Front/Rear tread(mm)

1385/1640

Mass

Payload (Kg)

2200

Curb weight(Kg)

5095

G.V.W (Kg)

7490

Tyre

Size

8.25-16

Performance

Speed(Kw/h)

95

Special function

Sweeping width(mm)

3200

Sweeping capacity(㎡/h)

9600-80000

Sweeping efficiency(%)

≥90

Max. sweeping speed(Km/h)

3-20

Sweeping Speed Cleaning Speed(Km/h)

15-25

Max. absorbing diameter(mm)

Ø220

Min. ground clearance of the suction Mouth (mm)

860

Angle of discharge(°)

60

Sweeping Brush Drive and Control

Hydraulic

Refuse container volume(m³)

4.5

Water tank volume(m³)

1

Sub-engine

EQ 4BT3.9 (Dongfeng)
