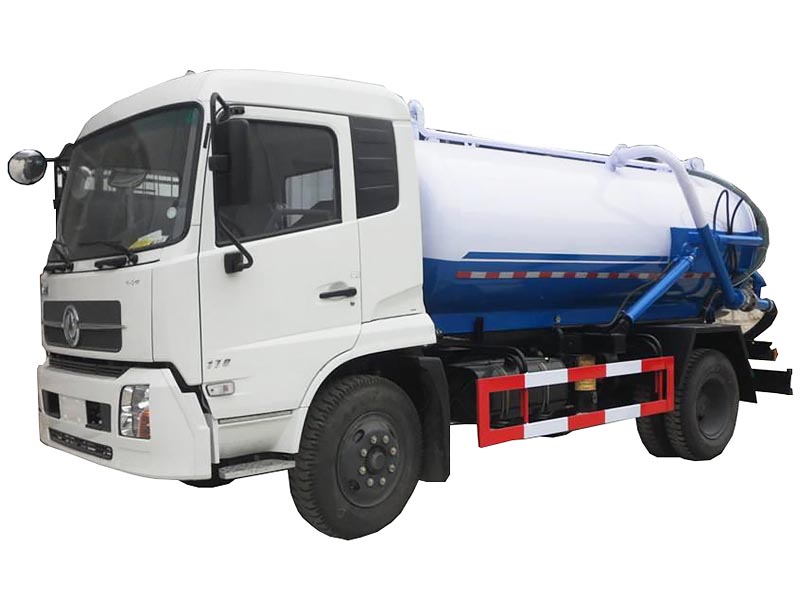

Dongfeng DFL1120 8-12 m³ Suction Sewage Truck

Truck

Drive mode

4×2

Chassis

DFL1120B

Engine

Model

CumminsISDe180 30

Type

136/2500

Power/Displacement(Kw/ml)

4500

Type of fuel

Diesel

Tyre

Size

9.00-20

Air conditioner

A/C

Dimensions

Overall dimension (mm)

8600×2500×2830

Wheel base (mm)

4700

Front/Rear tread(mm)

1880/1860

Performance

Max. speed(Km/h)

90

App./Dep. angel (°)

20/11

Max. gradability (%)

30

Min.turning diameter(m)

19

Min.ground clearance(mm)

240

Mass

Payload (Kg)

5930

Curb weight(Kg)

5880

G.V.W (Kg)

12005

Special functions

Specifications

Tank Volume (m³)

8-12

Tank overall dimension (mm)

4500×1500

Vacuum Pump Model

XD-44

Suitable turning speed(r/m)

500-600

Suitable revolution(min/rpm)

1400

Max.Vacuum Degree(kPa)

93-96

Effictive Suction Length(m)

≥7-20

Fulling time(min)

≤3

Tank lifting time(s)

≤10

Alarm method

Electronic alarm

Advantages

1. Enough sewage volume degree.
2. Protecting device to prevent the sewage from seeping into the pump body.
3. Volume pump is driven by hand, easy to operate.
4. Hydraulic pump is working synchronously with the volume pump ,very reliable.
5. Discharging by hydraulic system.
6. Beautiful appearance, easy operation and good performance.
