Diesel City Bus
Diesel Bus
The design of Diesel City Bus is simple but not simple, which is reflected in the delicate lines. Among them, the interior of yutong bus 2020 is made of high-quality materials, and the seat cover is made of high-grade environmentally friendly PVC fabric, which is wear-resistant, breathable and odorless; the backrest of higer city bus conforms to ergonomics and is comfortable to ride, bringing passengers a sense of pleasure during the journey. In addition, we have many other series to choose from.
Share With :

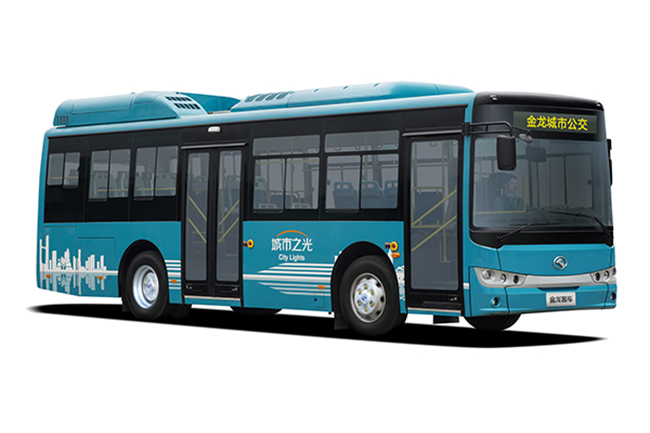

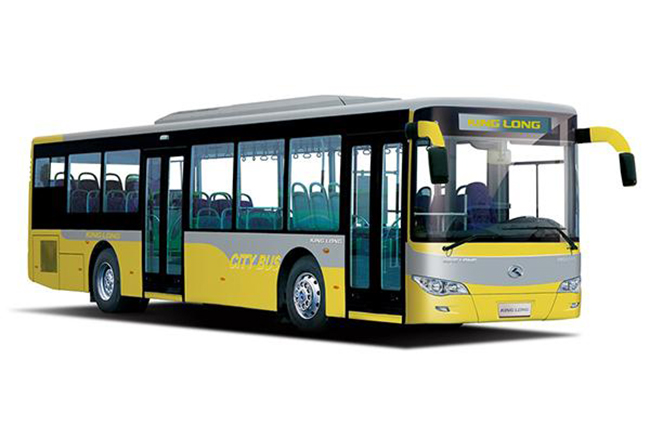

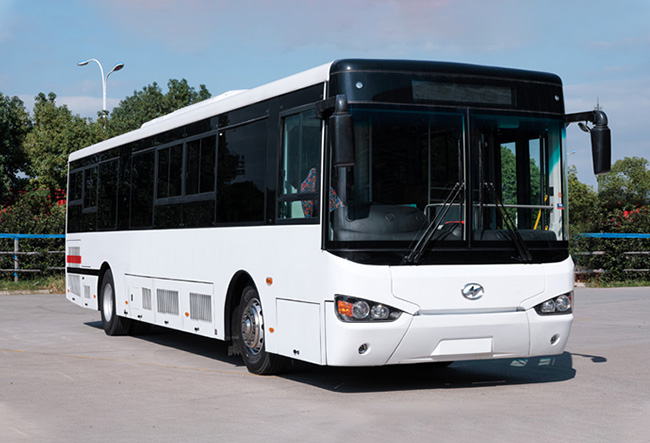

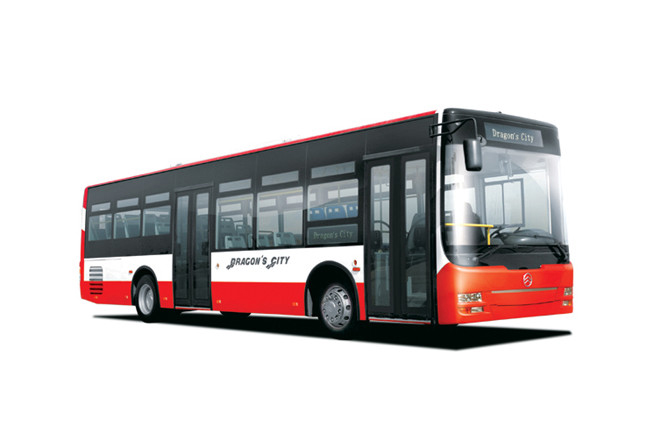

Detail image
Specifications
MODEL   XMQ6850G  XMQ6106G  XMQ6125AGD
 Length*Width*Height (mm)   8490×2450×3030,3140  10480×2500×3040/3190 (With air conditioner) (CNG status, with a height of 3370)  12450*2550*3300
 Wheelbase (mm)  4250 5100 6400
 Front overhang/rear overhang (mm)   1840/2400  2350/3030  2570/3480
ENGINE
 Brand   YUCHAI   YUCHAI  YUCHAI
 Model   YC4G180-50  YC6G240-30 YC6L280-30
 Emission standard   Euro V  Euro III Euro III
 Rated power (kw/rpm)   132/2300   177(240)/2200  206/2200
 Rated torque(N.m/rpm)   660/1100-1400   950/1200-1500  1100/1400-1600
 Displacement (L)  5.2 6.7 8.4
TRANSMISSION &CLUTCH
 Transmission   Manual transmission   Manual transmission  ZF automatic transmission
AXLES
 Front   DONGFENG axle  Chinese DANA axle
 Rear   DONGFENG axle  Chinese DANA axle
SUSPENSION   Multiple-leaf spring  Leaf Spring Air suspension, 2 air bellows in front and 4 in rear
STEERING
 Steering system   Chinese  Domestic Steering gear BOSCH power steering
Brake system
 Brake system (Disc/Drum)   Front/Rear Drum  Drum Brake Front disc and rear drum braking
 Tyre   9R22.5  Domestic 10.00-20 diagonal tire Michelin/Bridgestone tubeless tyres 295/80R22.5,Middle East spec
 ABS   ABS  No WABCO ABS
Body
 Doors   Front inner-swing doors,two of the middle inner-swing door  Front and rear double inner-swinging door  Aluminum alloy swing doors
 Side Windows   Aluminium alloy sliding windows  Enclosed toughened side windows (Left and right last pull-push window)  Underneath closed and upside sliding glasses
SEATS
 Driver   Mechanical damping driver seat(with three-point safety belt)  Fabric cover, King Long high back, adjustable driver seat  Shock absorbing high back adjustable seat, 3 point safely belt
 Passenger   KING LONG passenger seat  Public transit bus special seat  City bus special seat
OTHER STANDARD EQUIPMENT  Flat paint,&engine cabin automatic fire extinguisher  Independent defrosting device, sun visor (one spoke), MP3/Radio player, extinguisher 2×4kg, engine compartment automatic fire extinguisher, 4 units safety hammer, exit bell  CAN instrument, engine cabin automatic fire extinguisher, metallic paint optional
