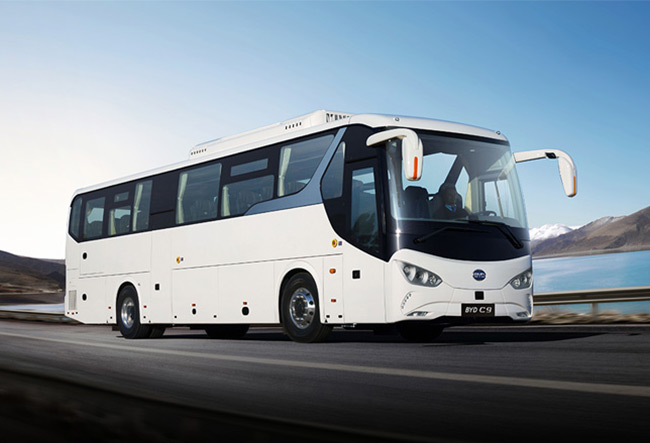

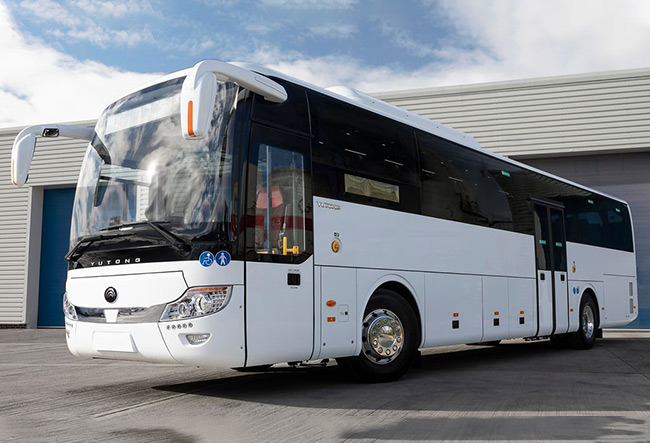

Electric Coach Bus
new electric coach bus

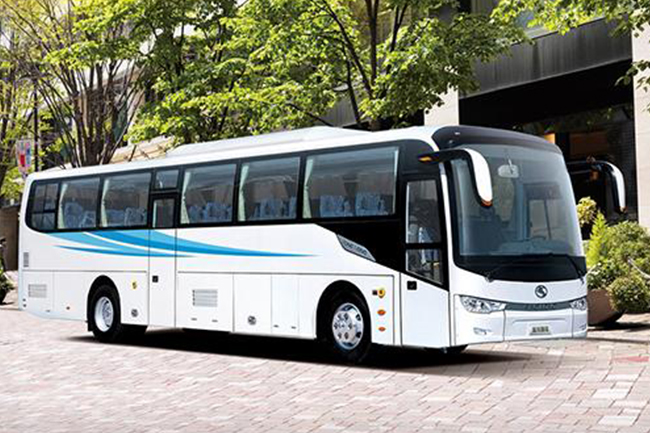

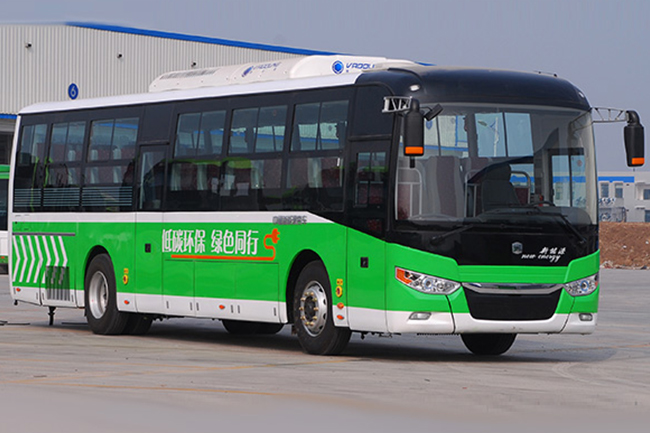

The electric coach bus runs entirely on electricity and is a battery-electric bus equipped with smart technology. Zhongtong electric bus series products have low noise, high driving stability, zero emission, and adopt lightweight optimization to greatly reduce power consumption and energy consumption. At the same time, we also have byd electric coach, yutong electric coach, higer electric bus and other series for your choice, welcome to inquire!
Share With :
Detail image
Specifications
Overall Parameter
L*W*H (mm)  11990*2500*3600
Inner height (mm)  2040
Inner width (mm)  2400
Wheelbase (mm)  6000
Front/rear suspension (mm)  2585/3405
Approach/departure (º)  8.5/8.5
Ground clearance (mm)  380
Max. gross weight(kg)  18600
Capacity (seats)  40+1
Turning R(mm)  12200
Max. speed (km/h)  90
Power train system
Battery model  Lithium battery
Unit Voltage/capacity  3.2V/20Ah
Total KWH  350
Motor model  Three-phase AC asynchronous motor
Power train type  Direction
Voltage (V)  547.2 (DC)
Rated /Max. power (Kw)  142/230
Rated /Max. torque (N.m)  800/2400
Running distance (km)  At least 250kms. (With Air-on, average speed 70km/h)
Charging type  Slow charging model (3-4 hours, with 120kw charger)
Connector/ Socket type  IEC62196 TYPE-2
Chassis
Front axle  Dena 7 T; disc brake
Rear axle  Dena 13T, drum brake
Suspension  Air suspension 2/4;
Brake  Electric air pumper; dual-circuit air brake; front disc and rear drum brake; air drier; ABS; and rear automatic adjustment arm
Tire  Michelin 295/70R22.5 ×6
Battery  120Ah×2
Motor radiator  Electric fan
Rear view mirror  Electric rearview mirror; inner mirror
Air conditioner  ZHONGTONG 26000Kcal/h
Seats  45+1, ZTZY3072 model, ZTZY1021 adjustable driver seat
