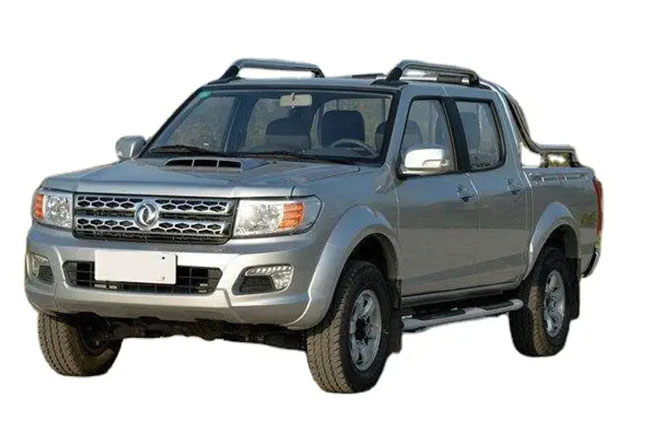

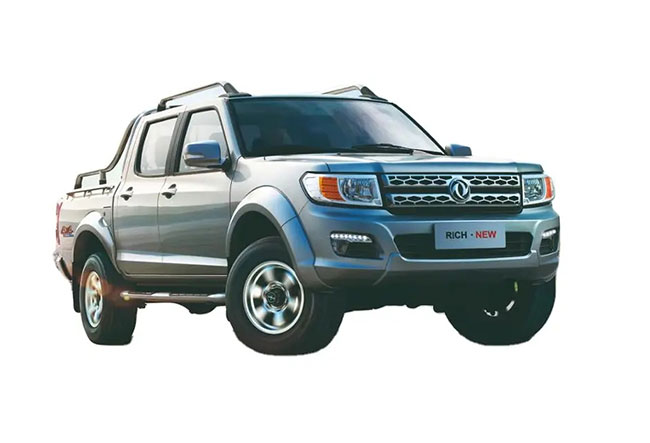

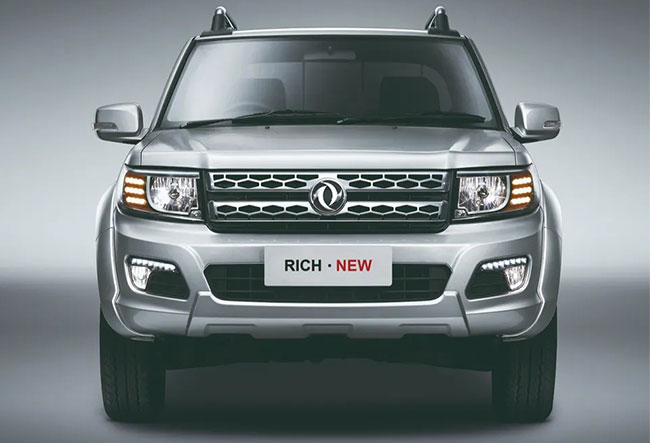

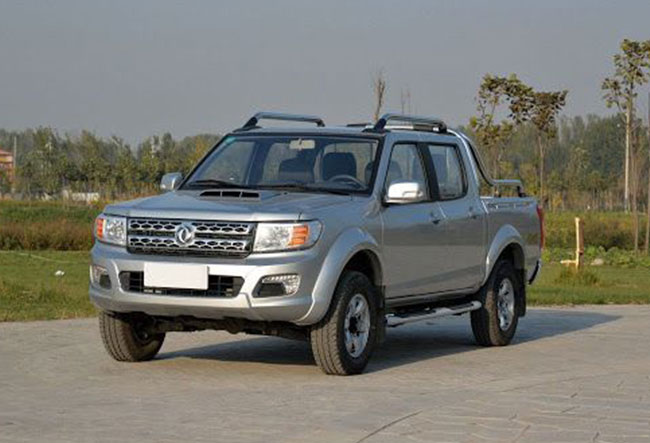

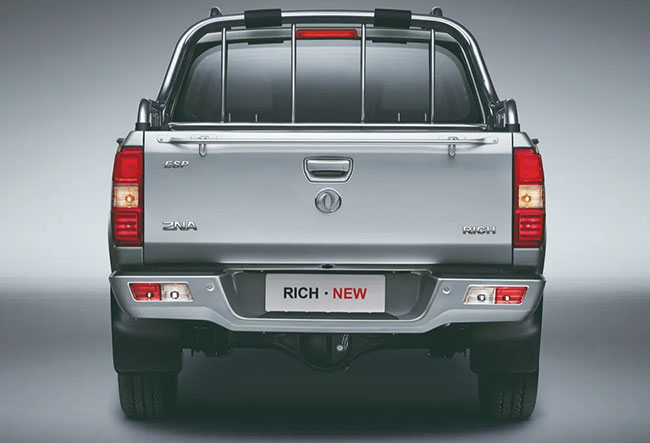

| Rich 6 EV Pickup Truck With Lithium Iron Phosphate Battery | ||
| Fuel type | EV | |
| Model | ZN1035UCX5 | |
| Model specifications | Z05A | |
| Driving type | 2WD | |
| Transmission | Electric single-speed transmission | |
| Emission standard | ||
| Parameters | L×W×H（mm） | 5290*1850*1810 |
| Wheelbase（mm） | 3150 | |
| Tread (Front/Rear)(mm) | 1570/1570 | |
| Cargo box L×W×H(mm) | 1510*1562*475 | |
| Min. ground clearance(mm) | 207 | |
| Min. turning radius(m) | 6.4 | |
| G.V.W. (kg) | 2715 | |
| Curb weight (kg) | 1900 | |
| Load capacity (kg) | 490 | |
| Approach angle/Departure angle(°) | 31/20 | |
| Max. gradeability(%) | 40 | |
| Passenger numbers | 5 | |
| BATTERY | lithium iron phosphate battery with 60.16KWh, Mileage 350km, charging time around 8 hours | |
| Max. speed (km/h) | 150 | |
| Motor | Model | permanent magnet synchronous motor |
| Driving mechanism | Braking | Front disk, rear drum |
| Suspension | Front: Double-wishbone independent | |
| Rear: Steel spring | ||
| Tyre | 255/70R16 | |
