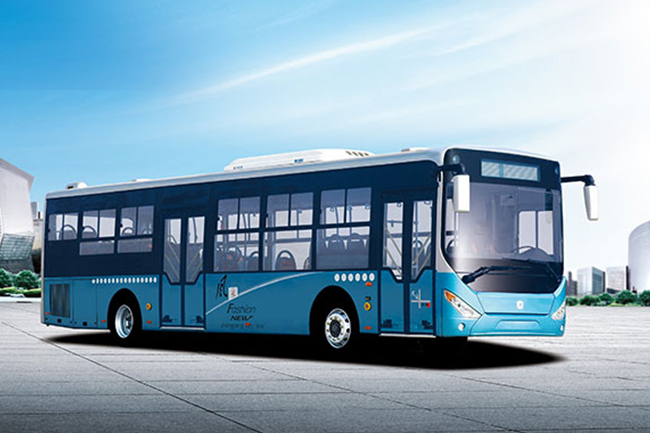

Zhongtong Diesel City Bus-Henan Tarzan Industrial Co., Ltd.

Features

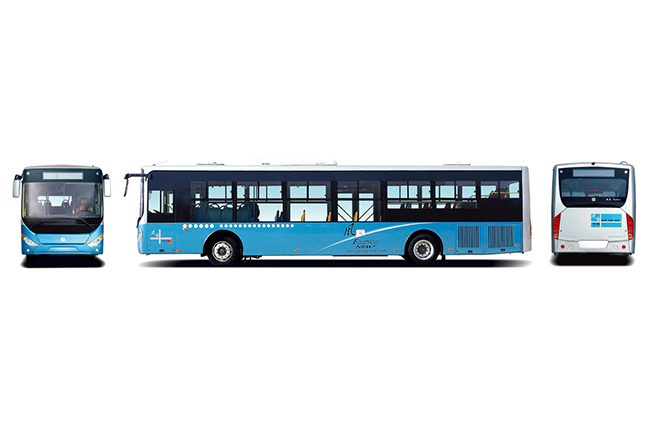

01. Appearance similar to public transport bus: the city bus is designed with the appearance of a public transport bus, with road signs set at front, back and right side of its body. It is equipped with armrests and 2+2 seat layout. Passengers can stand at the aisle. Luggage compartment is available inner the bus.
02 Skin of the front part of the bus is a combination of 4 structures for the convenience of checking the inner electrical elements.
03 Six-speed transmission is adopted according to the characteristics of intercity traffic. Instantaneous fuel consumption meter is mounted so drivers will get to know the oil consumption conditions and keep the bus running at the most economical state.
04 Simple uniaxial hinge is adopted for the side door to enhance the bus' reliability and sealability.
05 The air conditioner and heater system is employed with automatic control system and touch panel to realize a constant temperature control.
06 With the CAE finite element analysis technique, we have modified the bus structure to prevent bus's vibration and improved the system's safety.
07 The newly developed dashboard can be opened from the top for the convenience of checking the electrical elements.
08 Anti-collision beams are set both at the front and rear side of the bus to enhance its' safety.

Specifications

Bus Specification	LCK6950HG	LCK6105HGC	LCK6125G
total length (mm)	9500	10500	11990
total width (mm)	2500	2500	2540
total height (mm)	3120, 3280 (with air conditioner)	3120, 3455 (natural gas state)	3260 , 3170
inner height (mm)	2300	2280	2220
wheelbase (mm)	4500	5000	6000
front/rear suspension (mm)	2225/2775	2320/3180	2670/3320
approach angle/departure angle (º)	10.4/8.6	7.6/7.9	8/7
height of single step (mm)	≤380	≤380	≤380
max total mass defined by factory (kg)	13200	16000	17550
rated capacity (person)	62/27+3+1	25+3+1	standard 36+1
max speed (km/h)	69	90
Engine
model	WP6.210	BGE5 230/ YC6G230N-40	ISDe245 31
manufacturer	Weichai	Xigang/Cummins/Yuchai	Dongkang
position/fuel	rear/diesel	natural gas	rear/diesel
type	straight 6-cylinder, water cooling, intercooling	straight 6-cylinder, 4-stroke, water cooling, turbocharging, intercooling, direct injection	straight 6-cylinder, water cooling, turbocharging, intercooling, direct injection
max power (kw)	155	169/170	180
max torque (N.M)	760	678/850	925
displacement (ml)	6750	5900/7800	6700
cylinder diameter × stroke (mm)	105X130	102120/112132	107*124
Standard configuration
gearbox	ZD.F6S850 mechanical manual 6-speed transmission	Allison T270R	QJ1205 gear box, with Ⅰ and reverse gear set beside driver's seat
clutch	Φ395 single plate, dry, diaphragm spring, imported clutch, hydraulic control		single plate, dry, helical spring
front axle	Dongfeng Dana, 4.2 T, disc brake	Dongfeng Dana 7.5t door type front axle	Dongfeng Dana 6.5T
rear axle	Dongfeng Dana, 9T (precision grinding gear); disc brake	Dongfeng Dana 11t	Dongfeng Dana 13T
suspension	leaf spring; 5 for front/5 for rear	Komman air suspension	leaf spring 4/5
steering	integral power steering gear	integral power steering gear	ZF8098 integral power steering gear
brake	double circuit air brake / drum brake ; dryer; condenser	double circuit air brake / drum brake ; dryer; WABCO ABS&ASR	double circuit air brake / drum brake, oil-water separator, dryer; Option: Eddy current retarder (1500N.M)
fuel tank	200L	7×80L CNG natural gas cylinder from Tianhai; installed overhead; with glass steel cover	200L
tire	10R22.5 (Double Coin); quantity: 7	275/70R22.5; quantity: 6	275/70R22.5; quantity: 6
accumulator/alternator	165A.H×2/150A (Aobo) 24V	195A.h×2/110A 24V	195A.H×2/110A 24V; Option: engine: 150A, 24V (retarder state)
Others	wipers with scrubber	WABCO dryer; Autol lubrication system; bus body lift system from Knorr; gas pre-filter from Donaldson; fan from Horton
seat	ZTZY8061 seats for public transport vehicle; 1021 adjustable driver's seat; 3-point ECE safety belt; 2 spaces for wheelchair (with black floor mat)	25+3+1 layout; air suspension type luxury driver seat; ZTZY8050 passenger seat especially for public transport bus; 3 folding chairs	8050 passenger seat; 1021 adjustable driver's seat; safety belt and alarming system for driver; helmet for driver seat
