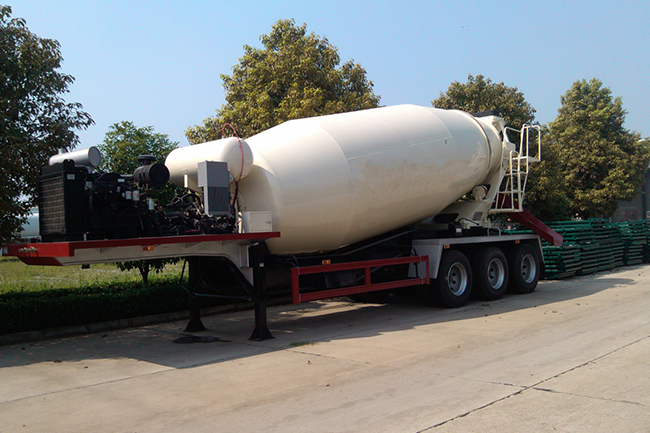

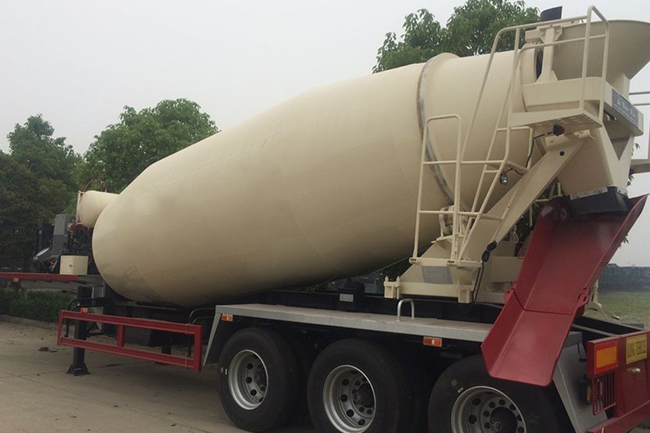

| 12m3 3 axle concrete mixer semi trailer | ||
| Basic Parameter | ||
| Overall Size | 9500×2500×3850 mm | |
| Number of axle | 3 | |
| Mixer body size | 12m³ | |
| Mixer body | ||
| Material | Q345 | |
| End plate | 6mm | |
| Mixer body | 6mm | |
| Mixer blade | 5mm | |
| Feeding speed m³/min | ≥3 | |
| Discharge speed m³/min | ≥3.5 | |
| Residule rate % | ≤012% | |
| Rotation speed (rpm) | 0-16 | |
| Power | Diesel engine | CUMMINS brand 140 hp, max torque 502 N.m |
| Hydraulic system | Hydraulic reduer | Italy TOP |
| Hydraulic pump | Italy ARK | |
| Hydraulic Motor | Italy ARK | |
| Radiator | YS-26 | |
| Cleaning system | Water tank capacity | 350 L |
| Water supply | By air pressure | |
| Chassis | ||
| Beam | I beam | |
| Axle | 3*13 Ton FUWA axle | |
| Tyre | 12R22.5 tubeless tyre with one spare | |
| Landing gear | JOST 28 Ton | |
| Suspension | FUWA heavy duty spring suspension | |
