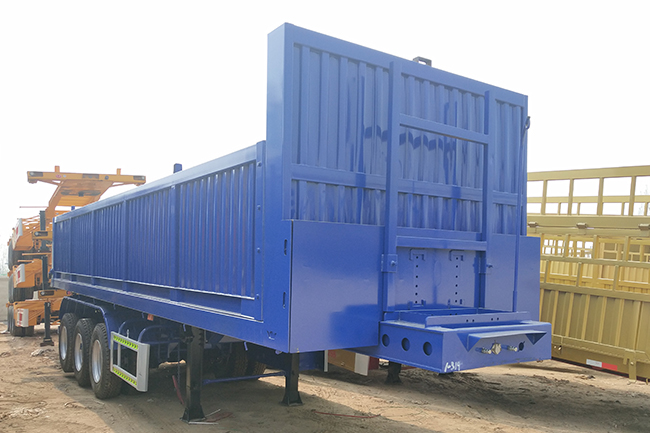

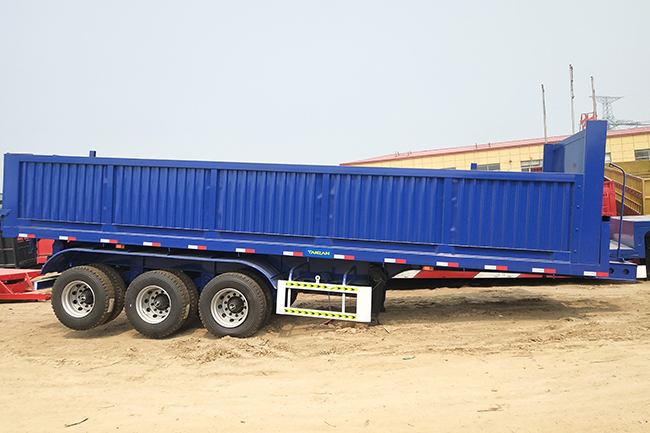

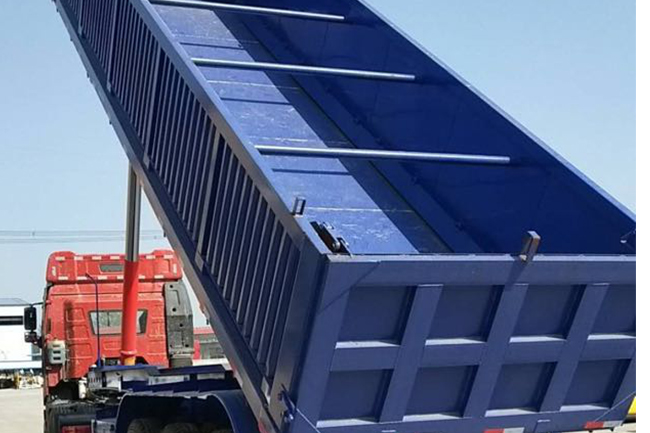

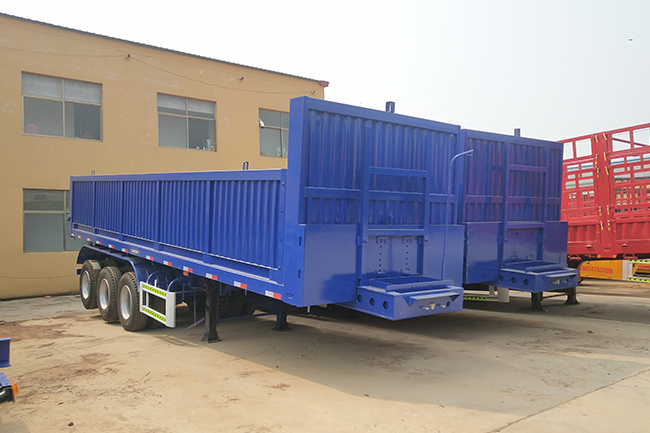

| Type: | 35T 3 Axles tipper Semi Trailer | |
| Payload | 35T | |
| Specification: |
Outside Dimensions (LxWxH) | 10000*2500*2800mm |
| Dump box dimensions(LxWxH): | 8900*2330*Hmm | |
| King Pin | 2.00’’ traction pin | |
| Suspension | Mechanical suspension,American design | |
| Steel Spring | 10pcs leaf spring, 13mm thickness, 90mm width | |
| Landing Leg Support | 28T, manual operation | |
| Bottom panel thickness: | 4mm | |
| Side panel thickness | 3mm | |
| Axle | Axle No./ weight/ brand | 3 axles *13T axles, TARZAN brand |
| Wheel: |
Tire specs | 11R22.5 |
| Rim | 9.00 | |
| Number of Tire | 12 | |
| Brake: |
Brake system |
Four double and two single brake chamber; one unit of reliable local brand air tank; two units of reliable local brand standard coppery air-connector. |
| Electrical: | Electrical: | One unit of 24V 7-pin ISO 1185 socket; two sets of reliable LED light |
| Miscellaneous: |
Painting |
Sand blasting before painting; one coats of primer, anti-corrosion; two coat of finish painting; color advised by client |
| Marking | standard | |
| Side Guard | standard | |
| Tools box | One piece (1. 0*0. 5*0. 5m)( equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar) | |
