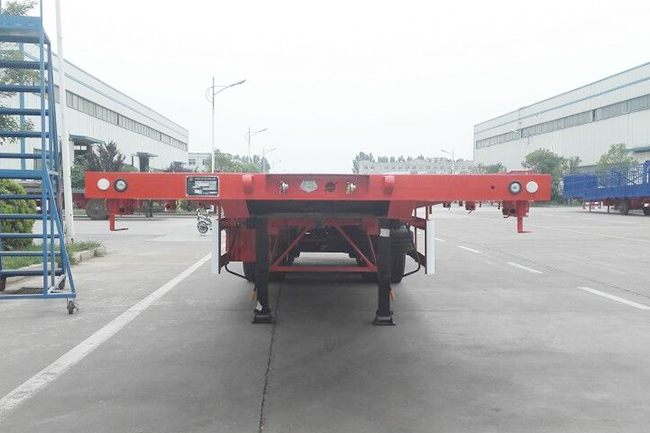

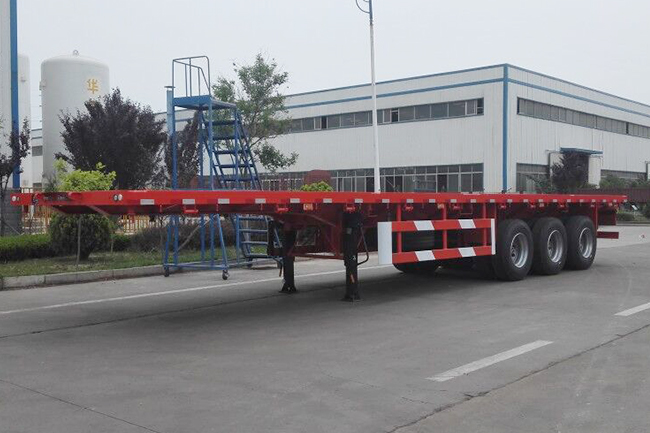

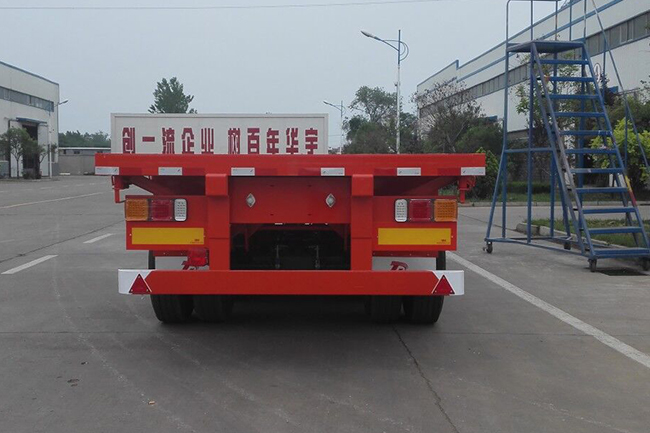

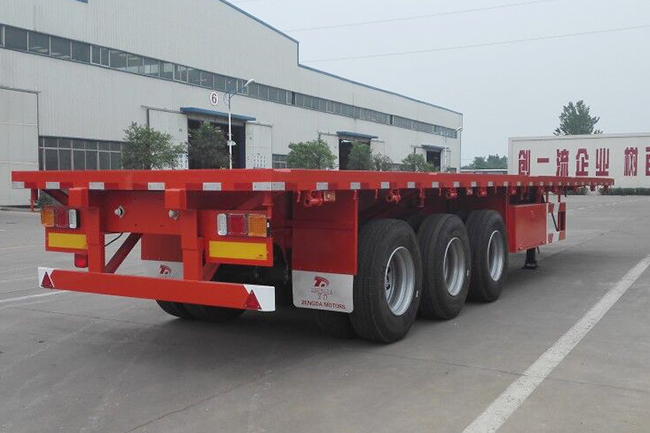

Flatbed Semi Trailer
Flatbed Semi Trailer
Flatbed Semi Trailer
Flatbed Semi Trailer
Flatbed Semi Trailer
Share With :
Specifications
                      Flatbed Semi Trailer Specification
√ Name: carbon steel flat bed Semi trailer
√ Loading capacity: 50T

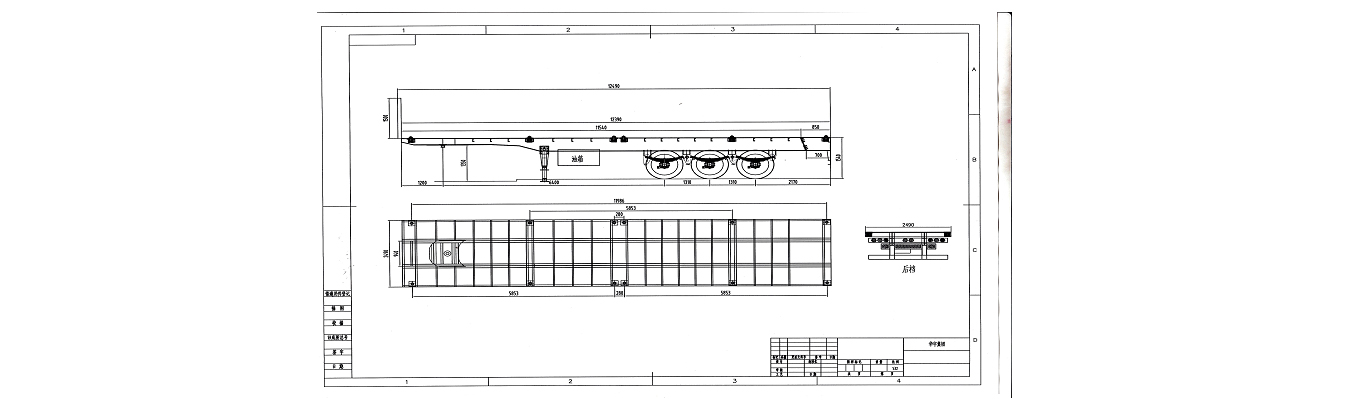

√ Size:12500x2500x1600mm




Chassis
(I beam)

Top flange plate Material and thickness Q345B  14mm
Bottom flange plate Material and thickness Q345B  16mm

Middle flange plate
Material Q345B
Thickness 8mm
Height 500mm

Side beam height
Type           U steel
          Bending parts
Height 16# U steel

Floor
Material                    Carbon steel Q235
Thickness                    3mm
Floor type                    Checkered plate




Running mechanism









Running mechanism


Container twist lock    12pcs for 1x40ft and 2x20ft container
Axle FUWA, 13T *3/2
Rim Type 9.0-22.5
   Number 12 pcs

Tire
   Brand Taitong brand
   Type 12R22.5
   Number 12pcs
Suspension Mechanical suspension

Spring leaf
Leaf width 90mm
Leaf thickness 13mm
Layer/set 10 Layer
King pin    Type Bolts type
Diameter 2  inch

Brake system
Air tank 40L air tanks
Brake chamber 4double spring brake chamber
    ABS Without
Landing gear Brand            Zhongli brand
Type 28T two speed


Accessories



Spare tire carrier            2sets
Light            LED light
Voltage            24v
Receptacle 7 ways(7wire harness)and quick change type
Tool box One piece,1000x500x500mm
Painting Polyurethane paint&anti-rust primer&sand blasting
Tools Head wrench ;spare wheel crank ;
