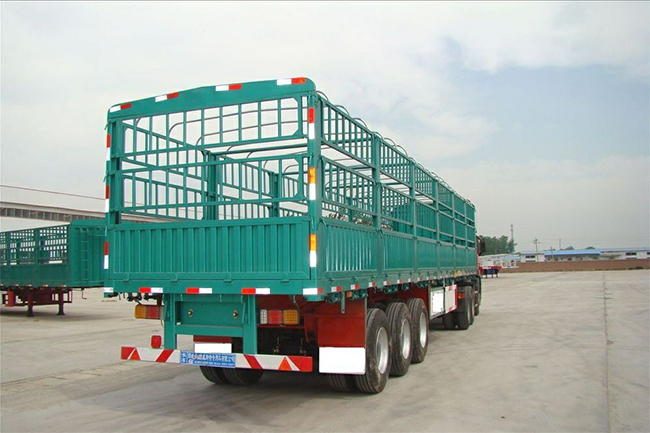

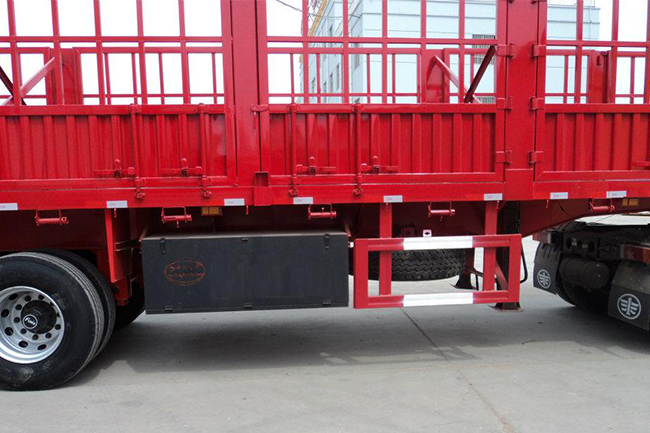

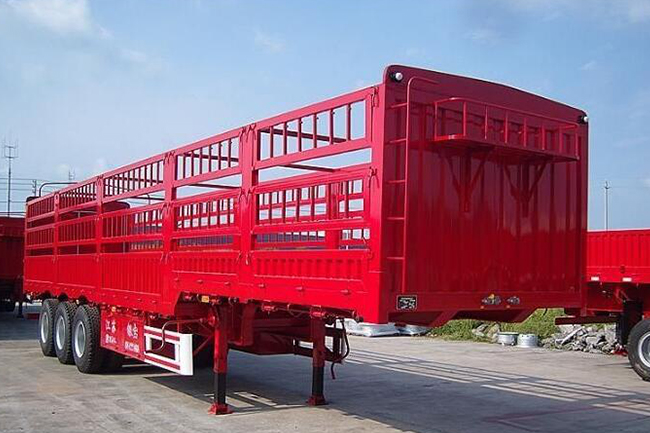

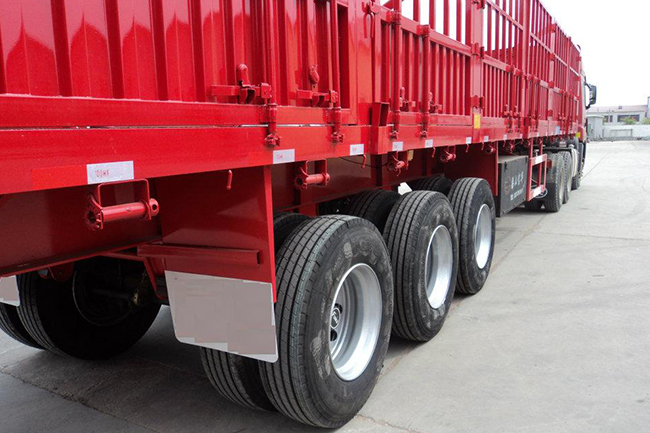

| 3-Axle Standard Lattice Semi Trialer | |
| Specification: | |
| Axle No. | 3 |
| Overall Dimension(m) | 9000x2700x1800 |
| Cargo body dimension | 8800x2320x1500 |
| Standard Configuration： | |
| Girder Height(mm) | 480 |
| Top Plate(mm) | 14 |
| Bottom Plate(mm) | 16 |
| Baseplate(mm) | 8 |
| Web(mm) | 8 |
| Axle Rated Payload | 13T |
| Tyre Model | 14 pcs 12.00R22.5 |
| Others: | |
| Equipment: | N0 |
| Tool Box | 2 |
| Spare Wheel Carrier | 2 |
| Tyres | 12 |
| Rim | 12 |
| Leaf Spring | 10 |
| 28T Landing Leg | 1 |
| Air Chamber | 1 |
| Fuhua Axle | 3 |
