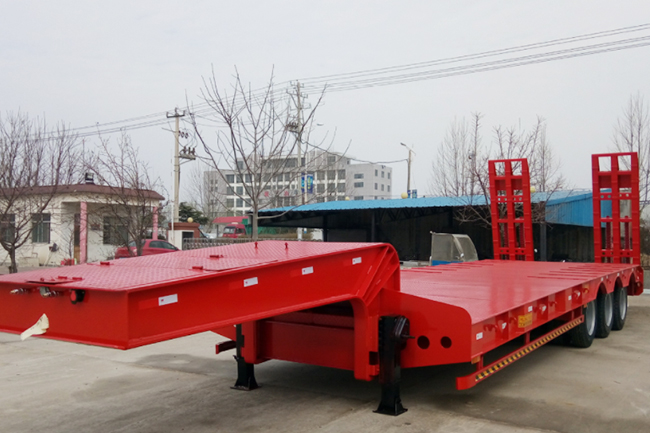

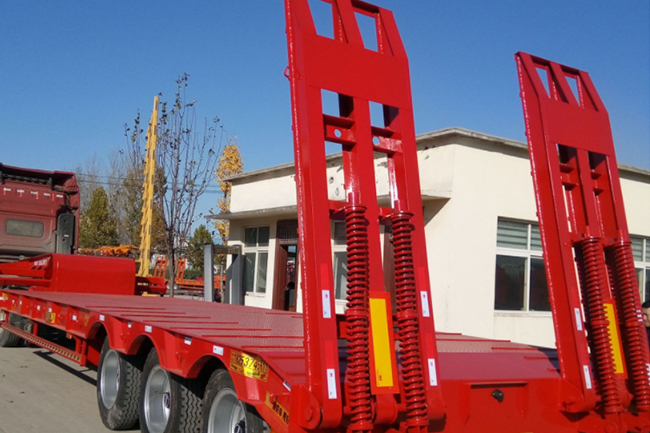

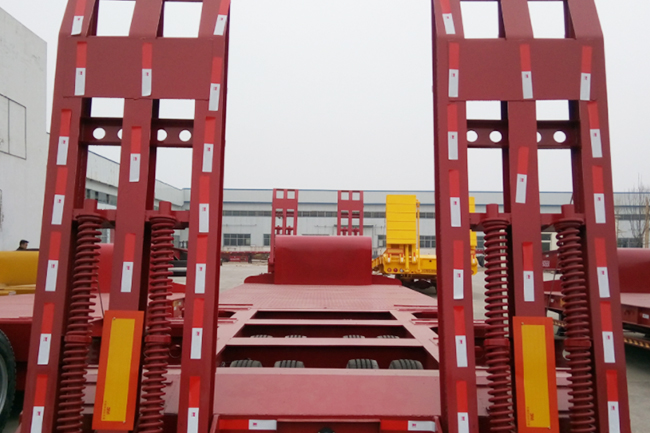

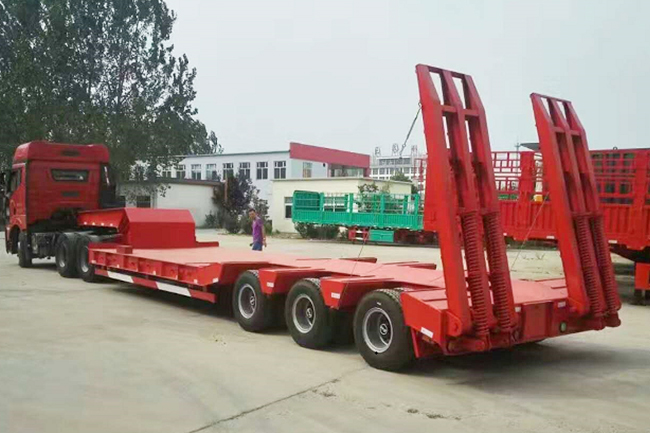

| 3 Axles Low Bed Semi-Trailer Parameters | ||
| DIMENSIONS | ||
| Curb Weight | 8217kg | |
| Payload | 70000kg | |
| G.V.W | 78217kg | |
| Overall Length | 13000mm | |
| Overall Width | 3000mm | |
| Overall Height | 1050mm | |
| SPECIFICATION | ||
| Main Frame | Heavy duty and extra durability designed; Opting for high tensile steel Q345B, welding by automatic Submerged-Arc processes 505mm Height I beam, Top Flange 14mm,width 140mm; Middle Flange 6mm ; Bottom Flange 16mm,width 140mm | |
| Floor | Upper limb:14mm; Lower limb:12mm; Plate:6mm | |
| Axle | Three Units of FUWA 16Ton axle | |
| Suspension | A couple of German Style mechanical 3-axle suspension | |
| Leaf Spring | Eight sets of reliable local brand, 10-piece leaf spring | |
| King Pin | One unit of 2`` kingpin | |
| Landing Gear | Two-speed , manual operating, heavy duty landing gear | |
| Wheel Rim | Twelve units of 8.0-22.5 rim | |
| Tyre | Twelve units of Triangle 12R22.5 tyre | |
| Twist Lock | Eight nos. of ISO twist lock for 2x20ft;1x40ft container, the central locks can be laid down. | |
| Spare Wheel Carrier | One set of spare wheel carrier including a riser. | |
| Pneumatic Braking System | Two units of WABCO RE 4 relay valve; four units of T30/30 spring brake chamber; two units of T30 brake chamber two units of reliable local brand 40L air tank ; two units of reliable local brand standard coppery air-connector. | |
| Electrical System | One unit of JAEGER POWAY ,24V 7-pin ISO 1185 socket; Tail lamp with turn signal, brake light & reflector , Side lamp etc. | |
| One set of DAFA(brand ) 6-core standard Cable. | ||
| Painting | Sand blasting processing clean rust | |
| One coat of anticorrosive primer | ||
| Two coats of finish urethane paint | ||
| Color as customer choice | ||
| Accessory | One tooling box with a set of standard trailer tool | |
