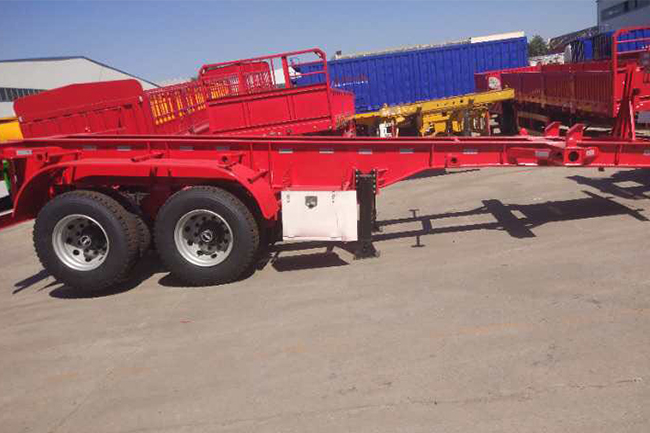

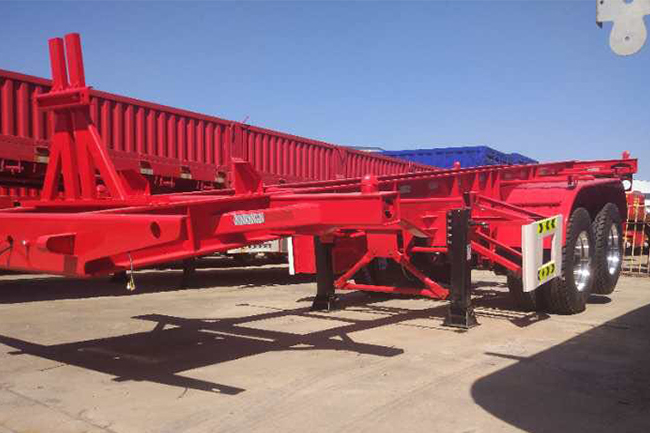

| Type: | 40ft Skeleton semi trailer | |
| Dimensions: | Outside dimension | 12400*2490*1400 mm (The final dimensions depend on the final design drawings) |
| Frame: |
Design/welding technology | Heavy duty and extra durability designed; welding by automatic Submerged-Arc processes. |
| Main beam |
Opting for high strength Q345B steel, 500mm deep welded I-section main beams Top Flange thickness 14mm Bottom Flange thickness 16mm Middle Flange thickness 8mm; |
|
| OEM parts: |
Axle | 2 *13 tons capacity, YORK brand |
| King Pin | 2.00’’(50#) bolting king pin | |
| Suspension | Two-axle suspension with equalizers, American design | |
| Steel Spring | Four sets of 10pcs leaf spring | |
| Twist Locks | 8 units ISO twist locks | |
| Landing legs | 28 Tons manual operation landing legs with sand shoe | |
| Tire specs | 11R22.5, Aeolus brand | |
| Rim | 8.25-22.5 | |
| Number of wheel | 8 pieces | |
| Brake system |
Four double brake chamber; Two units of reliable local brand standard coppery air-connector. |
|
| Electrical: | One unit of 24V 7-pin ISO socket; LED light | |
| Miscellaneous: |
Painting |
Sand blasting before painting; one coats of primer, anti-corrosion; two coat of finish painting; color advised by client |
| Marking | Standard | |
| Side Guard | Standard | |
| Spare Tire Carriers | Standard | |
| Tools box | Standard | |
| Note: All the details not mentioned should comply with Chinese regulations. | ||
