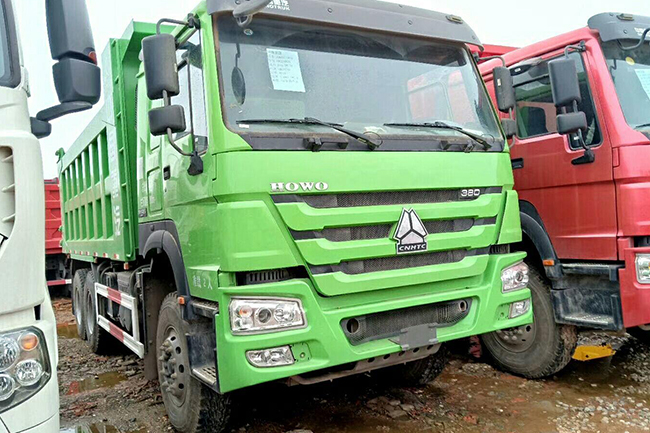

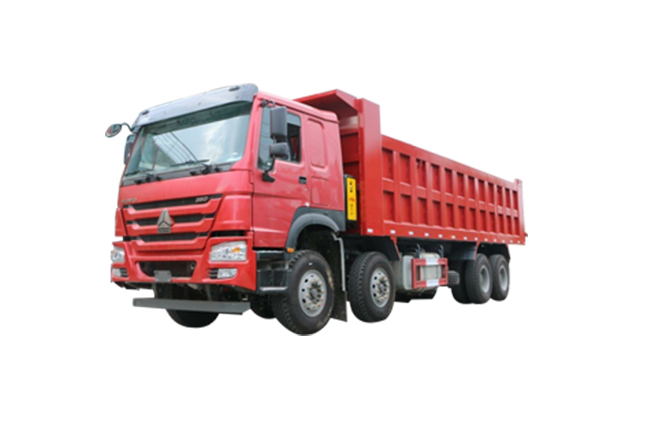

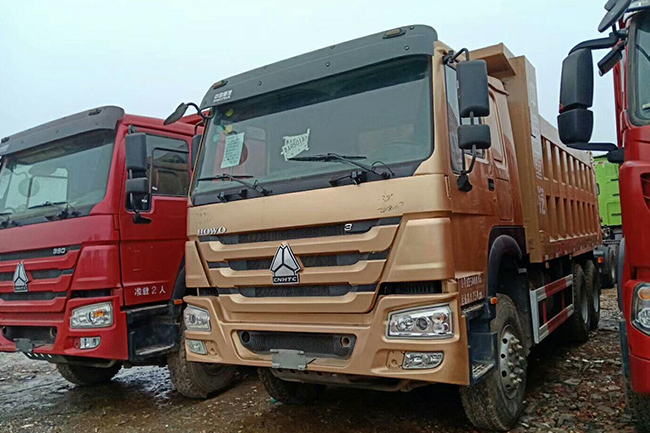

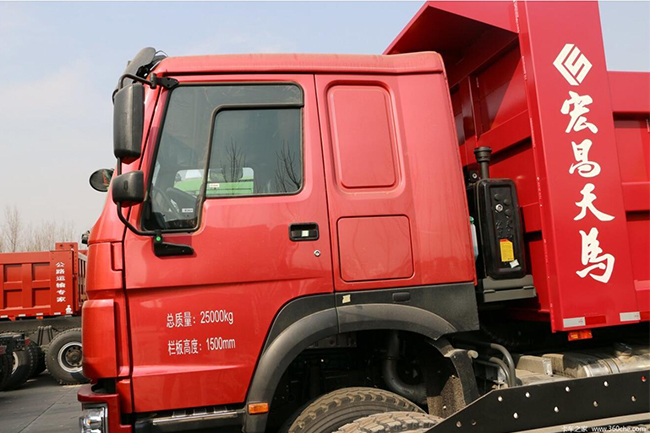

| Model | ZZ3257N4147E1 | |||||
| Brand Name | Sinotruk Howo | |||||
| Type of vehicle | Dump truck | |||||
| Manufacturer | Sinotruk Jinan Truck Co., Ltd. | |||||
| A subsidiary of CNHTC - China National Heavy Duty Truck Group Corporation (Sinotruk). | ||||||
| Brands | Sinotruk Howo, | |||||
| Sida Steyr, | ||||||
| Sinotruk Sitrak | ||||||
| Type of manufacturer | Automobile manufacturer | |||||
| City | Jinan | |||||
| Province (Region) | Shandong Province | |||||
| Country | China | |||||
| Year of production | 2014 | |||||
| Engine model | Engine displacement | Engine power | Engine manufacturer | |||
| D10.28-50 | 9 726 cc | 9.7 L | 594 cu in | 206 kW | 280 hp | China National Heavy Duty Truck Group Co., Ltd. (Sinotruk) |
| D10.31-50 | 9 726 cc | 9.7 L | 594 cu in | 228 kW | 310 hp | China National Heavy Duty Truck Group Co., Ltd. (Sinotruk) |
| D10.34-50 | 9 726 cc | 9.7 L | 594 cu in | 249 kW | 339 hp | China National Heavy Duty Truck Group Co., Ltd. (Sinotruk) |
| D10.38-50 | 9 726 cc | 9.7 L | 594 cu in | 276 kW | 375 hp | China National Heavy Duty Truck Group Co., Ltd. (Sinotruk) |
| Performance | ||||||
| Fuel | diesel fuel | |||||
| Environmental standard | GB17691-2005 National V / Euro 5, GB3847-2005 | |||||
| Maximum speed | 82 km/h | |||||
| ABS | have | |||||
| Capacity | ||||||
| Rated load capacity | 12620 kg | 12.6 t | 27,822 lbs | |||
| Load factor (the ratio of the payload of a vehicle to its weight) | 1.04 | |||||
| Weights and Ground pressure | ||||||
| Curb weight | 12250 kg | 12.3 t | 27,007 lbs | |||
| Gross vehicle weight rating | 25000 kg | 25 t | 55,000 lbs | |||
| Axle load distribution | 7000 kg / 18000 kg (tandem axle) | |||||
| 7 t / 18 t (tandem axle) | ||||||
| 15,000 lbs / 40,000 lbs (tandem axle) | ||||||
| Dimensions | ||||||
| Overall length | 8760 mm / 8845 mm | 28′9″ / 29′1″ | ||||
| Overall width | 2496 mm | 8′3″ | ||||
| Overall height | 3450 mm / 3800 mm | 11′4″ / 12′6″ | ||||
| Cargo body | ||||||
| Cargo body length | 5800 mm / 6000 mm | 19′1″ / 19′9″ | ||||
| Cargo body width | 1115 mm | 3′8″ | ||||
| Cargo body height | 2300 mm | 7′7″ | ||||
| Undercarriage and Suspension | ||||||
| Number of axles | 3 | |||||
| Wheelbase | 4125+1350 mm | 13′7″+4′6″ | ||||
| Front track | 2022 mm, | 6′8″, | ||||
| 2041 mm | 6′9″ | |||||
| Rear track | 1830 mm / 1830 mm | 6′1″ / 6′1″ | ||||
| Front/rear overhang | 1500 mm / 1785 mm, | 5′0″ / 5′11″, | ||||
| 1500 mm / 1870 mm | 5′0″ / 6′2″ | |||||
| Angle of approach | 14° | |||||
| Angle of departure | 25° | |||||
| Leaf springs | 10 / 12, 10 / - | |||||
| Tyres and Wheels | ||||||
| Number of tyres | 10 | |||||
| Tyres dimension | 12.00R20 16PR, 12.00-20 18PR, 11.00R20, 11.00-20 | |||||
| Miscellaneous | ||||||
| Seating capacity | 2 | |||||
| Steering control | steering wheel | |||||
