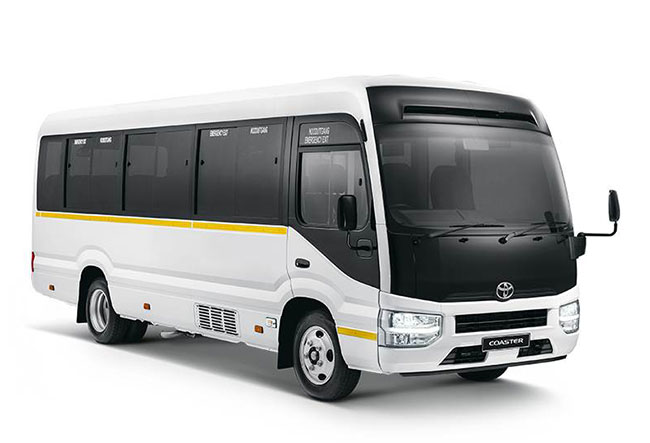

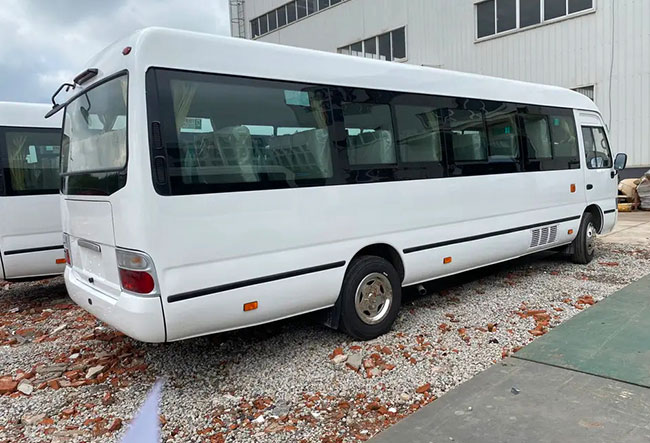

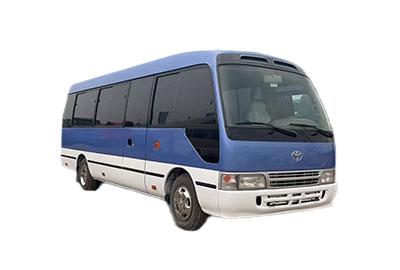

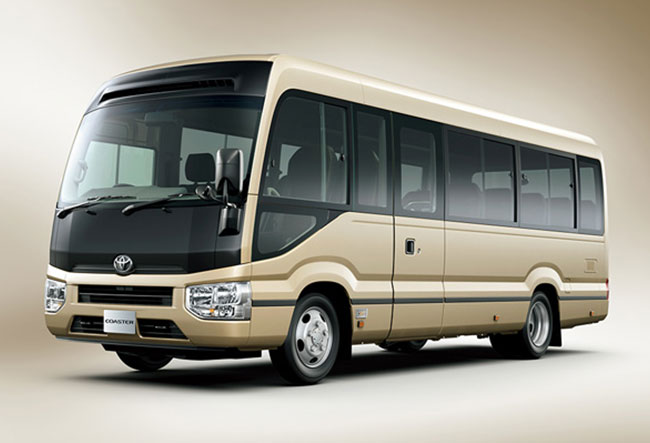

| 30 Seater Toyota Coaster bus Specification | |||||
| specification | overall length(mm) | 7740 | Engine | engine model | EQB140-20 |
| overall width (mm) | 2160 | engine manufacturer | Cummins | ||
| overall height (mm) | 2660/2720 | engine position/fuel | front-mounted/diesel | ||
| wheel base (mm) | 4435 | engine type | in line, 4 cylinders, | ||
| front/rear track(mm) | 1830/1650 | power rating (kw) | 103 | ||
| approaching and departure angle (º) | 18/17 | max. torque( n.m) | 502 | ||
| first step height (mm) | ≤430 | displacement (ml) | 3.9 | ||
| max. total mass (kg) | 7500 | emission standard | Euro II | ||
| capacity (people/seats) | 30+1 | max. speed (km/h) | 100 | ||
| item | standard specification | selected specification | |||
| Price | Used：$7,800.00~$11,500.00；New：$11,700.00~$12,500.00 | ||||
| Chassis | transmission | 5+1 Manual gear box | |||
| clutch | diaphragm type clutch | ||||
| front axle | drum brake | ||||
| rear axle | drum brake | ||||
| suspension | less -leaf spring | ||||
| steering | integral power steering ,left hand driver | ||||
| braking | air controlled dual-circuit brakes; energy storage spring parking brakes | ||||
| oil tank | 85L | ||||
| tire | 215/75R17.5 | ||||
| others | dryer air brake, clutch booster | ||||
| body structure | rectangular hollow section welded | ||||
