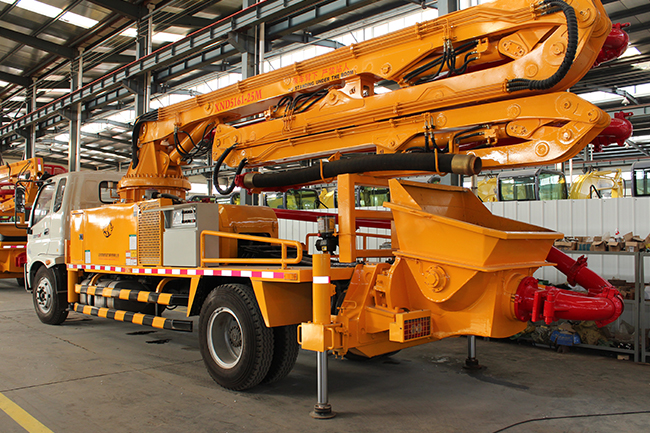

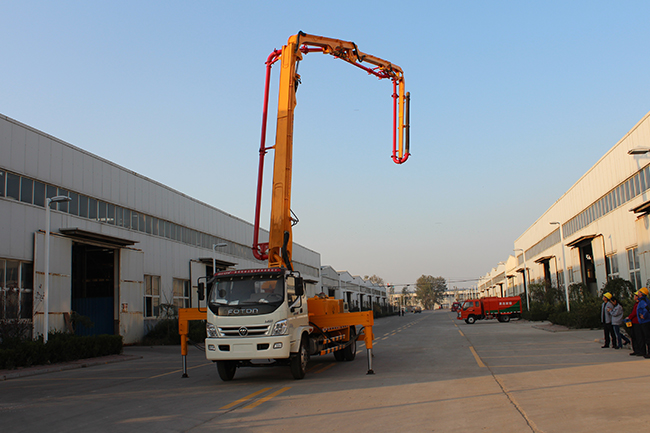

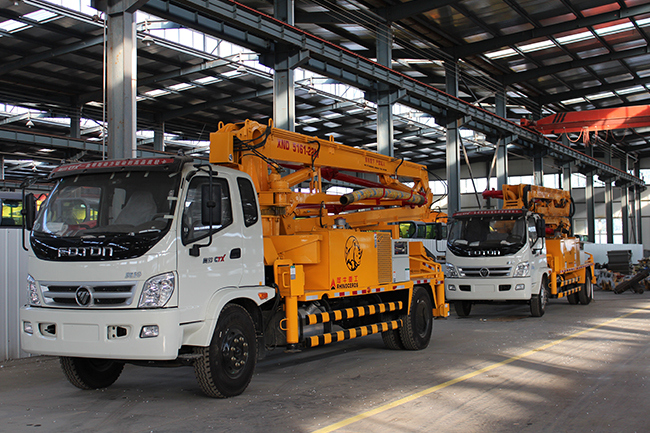

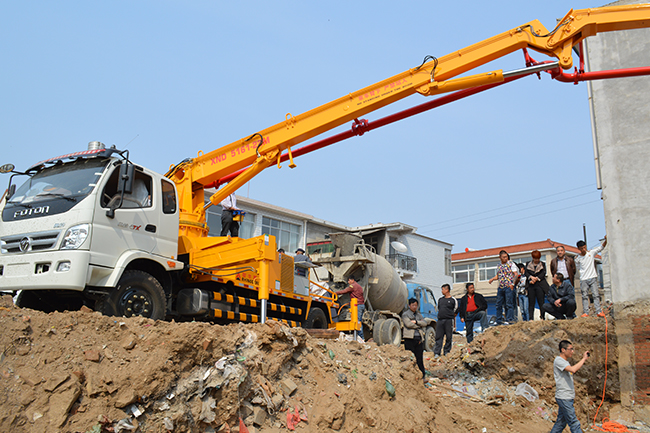

| MODEL | XND5161-26M | ||
| Vehicle Dimension | Length | 9600 mm | |
| Width | 2400 mm | ||
| Height | 3400 mm | ||
| Total weight | 15200 kg | ||
| Boom & outrigger | No. of section | 4 | |
| Vertical reach | 26m | ||
| Horizontal reach | 21.48 m | ||
| Reach depth | 12m | ||
| 1st section | length | 6900 mm | |
| Articulation | 90° | ||
| 2nd section | length | 5010 mm | |
| Articulation | 180° | ||
| 3rd section | length | 5010 mm | |
| Articulation | 270° | ||
| 4th section | length | 4565 mm | |
| Articulation | 220° | ||
| 5th section | length | / | |
| Articulation | / | ||
| Rotation | ±360° | ||
| Distrance of front outriggers out | 5200mm | ||
| Distrance of rear outriggers out | 4900mm | ||
| Distance of F-R outrigger out | 5550mm | ||
| Pumping system | Theoretically output | 65 /75 m3/h | |
| Max. Strokes per minutes | 16 times/min | ||
| Delivery cylinder diameter | 200 / 230 mm | ||
| Stroke length | 1800 mm | ||
| Hydraulic system | Open loop | ||
| Hydraulic system oil pressure | 32 MPa | ||
| Outlet pressure | 6.8 / 10 Mpa | ||
| Oil tank capacity | 600 L | ||
| Water tank capacity | 400 L | ||
| Pipe line size | 125 mm | ||
| End hose length | 3 m | ||
| End horse diameter | 125 mm | ||
| Chassis | Chassis model | DFM | |
| Engine power | CUMMINS (170 hp) | ||
| Emission standard | National IV | ||
| Displacement | 3760ml | ||
| Max. speed | 110km/h | ||
| Ground clearance | 260 mm | ||
| Wheel base | 5200mm | ||
| Front wheel track | 1830mm | ||
| Rear wheel track | 1880mm | ||
