  • Dongfeng 8x4 DFL1311 28000L Fuel Tanker Truck

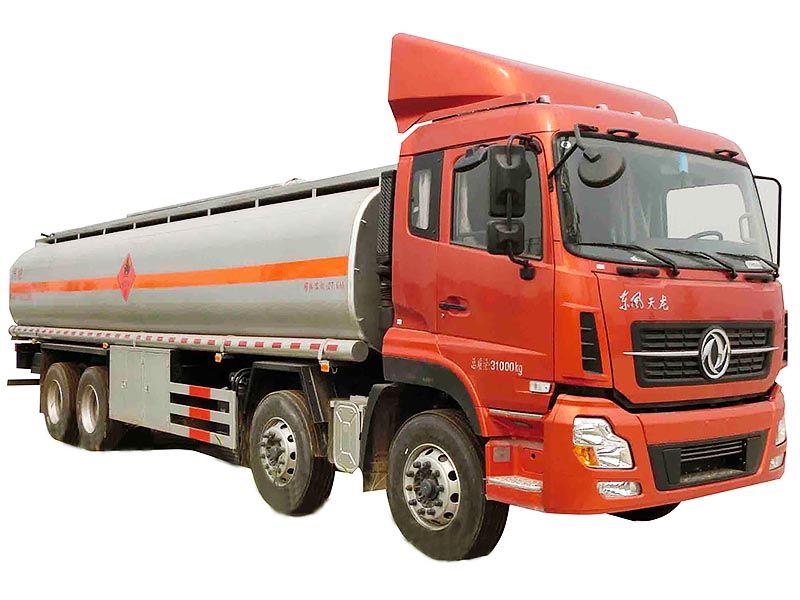

Dongfeng 8x4 DFL1311 28000L Fuel Tanker Truck

  • Chassis Dongfeng 8x4 chassis
  • Engine Cummins engine
  • Fuel tanker capacity 26-28m³/26000-28000L

We're here to help:Easy ways to get the answers you need

Feature

Main Feature:


Chassis: Dongfeng 8x4 chassis

Engine: Cummins engine

Fuel tanker capacity: 26-28m³/26000-28000L

parameter

Truck

Drive Mode

8×4

Chassis

DFL1311A3

Engine

Model

Cummins ISLe290 30

Type

6-cylinder in line, turbocharging, air cooling, inter cooling, electrical control common-rail engine

Max. power(Kw/rpm)

213/2100

Max. torque(N.m/rpm)

105/1000-1900

Bore /Stroke(mm)

114×144.5

Displacement(ml)

8900

Type of fuel

Diesel

Compression ratio

16.6:1

Gearbox

Model

9JS119T-B

Max.torque(N.m/rpm)

1190

Dimensions

Overall dimension (mm)

11980×2500×3200

Wheel base (mm)

1950+4250+1300

Front/Rear tread(mm)

1940/1860

App./Dep. Angle(°)

20/13

Mass

Payload (kg)

17965

Curb weight(kg)

12505

G.V.W (kg)

30600

Special functions

Overall dimension of tank (Length*Macro axis*Minor axis) (mm)

9200×2250×1450

Effective Volume(m³)

28

Tansport Medium

all kinds of oils, chemical liquids

Material of tank

carbon steel/stainless

It has the functions of oil absorption, oil pumping and etc. The tax control computor tanker, 15m oil reel, self-zeroing flow meter and oil gun are optional.
