  • Dongfeng DFA1063 Fuel Tanker Truck

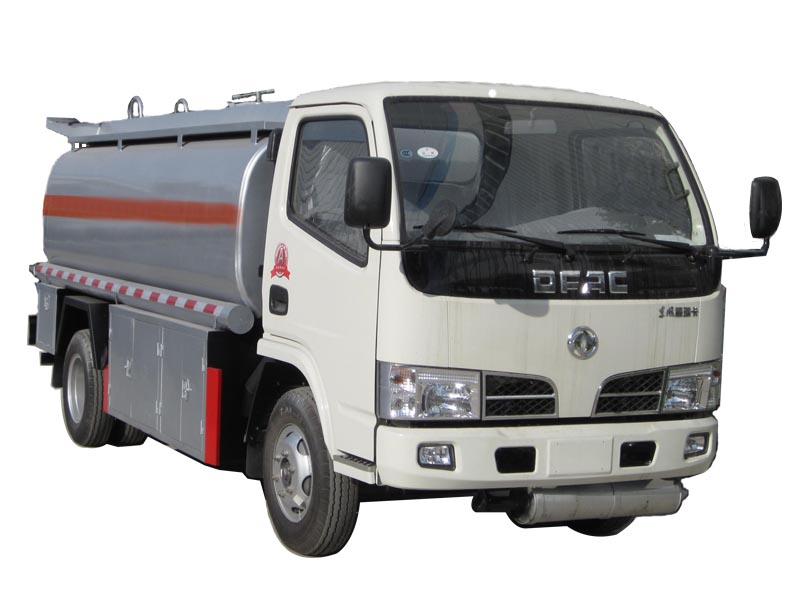

Dongfeng DFA1063 Fuel Tanker Truck

  • Chassis Dongfeng chassis
  • Engine chaochai
  • Fuel tanker capacity 5m³/5000L

We're here to help:Easy ways to get the answers you need

Feature

Main Feature:


Chassis: Dongfeng chassis

Engine: chaochai

Fuel tanker capacity: 5m³/5000L

parameter

Truck Drive Mode 4×2
Chassis DFA1063
Engine Model Chaochai CY4102-C3E
Type 4-cylinder in line, water cooling, turbocharging, inter cooling,vertical engine
Max. power(Kw/rpm) 75/3000
Displacement(ml) 3856
Type of fuel Diesel
Dimensions Overall dimension (mm) 6890×2220×2510
Wheel base (mm) 3800
Front/Rear tread(mm) 1586/1530
App./Dep. Angle(°) 22/13
Mass Curb weight(kg) 2850
G.V.W (kg) 6475
Special functions Overall dimension of tank (Length*Macro axis*Minor axis) (mm) 5000×1900×1050
Effective volume(m³) 5
Tansport medium all kinds of oils, chemical liquids
Material of tank carbon steel/stainless
It has the functions of oil absorption, oil pumping and etc. The tax control computor tanker, 15m oil reel, self-zeroing flow meter and oil gun are optional.
